Indoor Compact Line Array

Now in its second year the PALM Indoor Line Array has grown from three slots in 2018 to six in 2019. Below is a listing of the five line arrays that will be demoed at PALM in the Indoor Line Array section. The INDOOR LINE ARRAY DEMO DESIGN GUIDELINE was derived from various inputs of Line Array theory published by market majors in the field of line array. The objective of this demo feature is to demonstrate a Line Array rig in an acoustically and dimensionally challenging space.

Dare Audio - L8-24/S8-24

The Extremely high SPL coming out of the Compact Line Array is the latest introduction to the Line of Dare Audio Systems. The system is from the Series 8 Line of products which promises a lot of improvements from its predecessors. These Active Speakers are Powered by extremely efficient Built In DSP Amplifiers for High Quality Sound Output. The most unique feature is the Digital Network Transmission (Cante - Upgradable to Dante) at an extremely affordable price.

Main Features include:

• Digital Networking Transmission (Cante/Dante)
• Extremely High SPL with 126db at 125Metre distance
• Extremely Versatile with wide applications
• Software Controlled Parameters (Ease of use)
• Provision for Redundancy
• DIP Switch on Speakers for quick Audio Signal Selection
• Frequency Range - 22Hz - 22KHz
• Light Weight for ease of Rigging
• DSP provided along with software
• Long Throws for Big Shows
• Remote control for Ease of Management
• RJ45 Signal Ports for Digital Network Transmission
• Lossless transmission for long distances

Tech Specifications:

• L8-24
  • Built in Class D Amp
  • RJ45 Connector - 2
  • Daisy Chain Option
  • Dimensions (WXHXD): 820 X 340 X 400 (mm)
  • Transducers: 2X12”Nd + 2X1.8”Nd
  • Impedance: LF: 8Ω; HF: 8Ω
  • Power Rating:700/2800W
  • Sensitivity: 103db
  • SPL Max: 145db
  • Freq Range: 60Hz-22Khz
  • Coverage: 110 X 15
  • Weight: 33kg
• S8-24
  • Built in Class D Amp
  • RJ45 Connector - 2
  • Daisy Chain Option
  • Dimensions (WXHXD): 660X820X600 mm
  • Transducers: 1X24”
  • Impedance: 4Ω
  • Power Rating: 800/3200W
  • Sensitivity: 102db

---

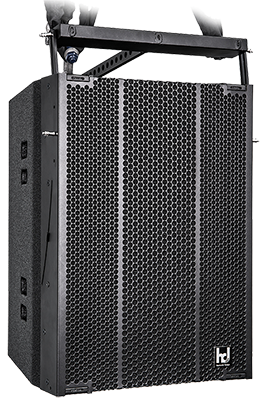

Harmonic Design HLS24

The HybridLineSource is a new and worldwide unique loudspeaker system developed by Harmonic Design, which reduces the needed truck space dramatically and improves the quality of a public address system to a new level of uniformity and complete absence of distortions.

The TourSys-2 Features 2 HLS24 Tops, 4 Infra 218 Subs and 2 Powersoft Amps Powering the entire setup firing upto 12,800 R.M.S. capable of supporting an audience of 1500 People.

Main Features include:

• HLS24 TOPS
  • Horn Loaded, Vented Coaxial and Line Array Enclosure
  • Frequency and Phase optimised Crossover
  • Innovative Hybrid Design
  • Extremely high SPL of 144db
  • Peak Power of 4800W
  • Coverage of 100 X 40
  • Dynamic Range below 60Hz
  • Fast Rigging System
• Infra218 Subwoofers
  • Hybrid Enclosure
  • Low frequencies of up to 28Hz
  • Extremely High SPL - 149db
  • Peak Power 14400W
  • 2X M20 flange
• PowerSoft Amplifiers X-4 and X-8
• Flight Case for HLS24
• Soft Case for Infra218
• Compact dimensions
• Light Handling
• System Power - 12800 RMS
• Remote Surveillance and Remote Control
• Plug and Play

Technical Specifications:

• Dimensions (WXHXD): 480 X 675 X 560 (mm)
• Transducers: 2X12”N + 4X1.4”N
• Impedance LF: 4Ω ; HF : 8Ω
• Power Rating: 1200/4800W
• Sensitivity: LF 108db: HF 110db
• SPL Max: 144db
• Freq Range: 60Hz-20Khz
• Infra: 218
• Dimensions (WXHXD): 1190X536X670 mm
• Transducers: 2X18”N
• Impedance: 4Ω
• Power Rating: 3600/14400W
• Sensitivity: 106db
• SPL Max: 149db
• Frequency Range: 28Hz - 90Hz
• Weight: 89kg
• Powersoft X4 and X8
• 4X XLR/Dante & 8X XLR/Dante
• DSP Filter: FIR/IIR
• Class D Amplifier
• RMS @ 4Ω: 4X3000W and 8X300W
• Protection Circuits: Yes
• Weight: 15g & 24kg

---

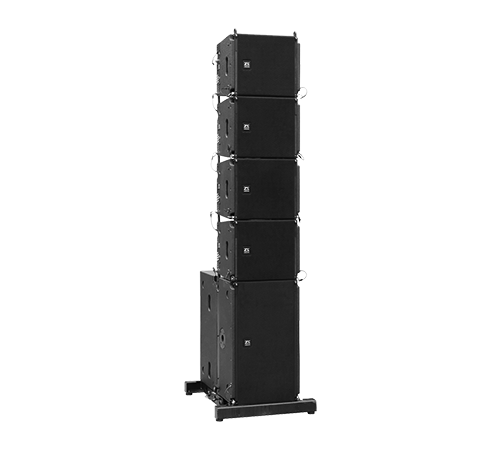

Zsound LC10, LC10SP, LC18P

This product is a combination of three different models i.e. Zsound LC10 line array, LC10SP 15” Self-powered subwoofer and LC18P 18” subwoofer.

LC10 is a professional coaxial single 10”-line array speaker is extremely compact and light weight. LC10SP is a compact and omnidirectional 15” Self-powered subwoofer with a built-in amplifier for LC10. Another one is portable and easy to transport omnidirectional LC18P 18” subwoofer which can deliver a maximum SPL of 136dB.

Main Features include:

• Zsound LC10:
  • Full-range small Line Array Spaker system
  • 50Meter long throw, smooth voice at high frequency
  • Neodymium high-sensitivity driver
  • Compact two-way passive system, 16ohm nominal impedance
• Zsound LC10SP
  • Self-powered subwoofer for LC10 Line Array speaker system
  • Omnidirectional Nominal Coverage
  • Air Flow from back to front cooling system
  • Dual channel 1200-watt amplifier module
• Zsound LC18P
  • Works best with LC10 speakers
  • Its surface has the design to carry two LC10 Speakers.

Technical Specifications:

• Zsound LC10 :
  • Frequency Response: 60Hz-18KHz (±3dB) 50Hz-20KHz(-10dB)
  • Sensitivity (@1w/1m): HF/LF: 112dB SPL / 96dB SPL
  • Nominal Impedance: HF/LF: 16/16ohm
  • Maximum SPL: HF 138 dB SPL Peak / LF 132 dB SPL Peak
  • Dimension (H*W*D): 304*360*260mm
  • Weights: 13kg / 27lbs
• Zsound LC10SP :
  • Frequency Response: 30Hz-150Hz (±3dB)
  • Maximum SPL: 130 dB SPL Peak
  • Dimension (H*W*D): 384*663*620mm
  • Weights: 35kg / 77lbs
• Zsound LC18P :
  • Frequency Response: 28Hz-250Hz (±3dB)
  • Power Requirement: 200-240v-50-60Hz / 0.82%
  • Dimension (H*W*D): 938*638*700mm
  • Weights: 70kg / 154lbs

---

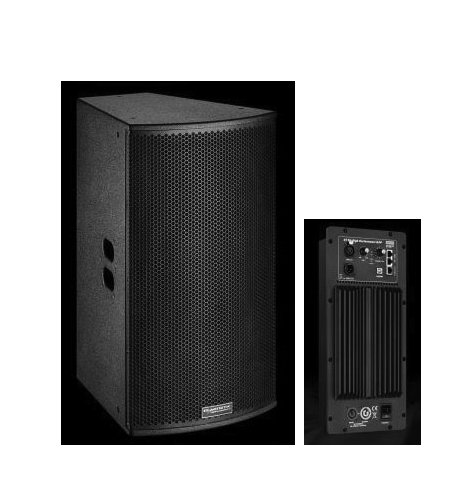

Magnetic Stimulator10A and PK 815A

Stimulator is a two-way line array.

Main Features include:

• 96KHz sample rate, floating point DSP3300 watt
• 2-way amplifier
• Can be used through WIFI
• 85-266V with PFC
• Intelligent sleep and wake-up<1

PK-815A is a 2-way, 15” high-performance light weight active loudspeaker.

Main Features include:

• 96KHZ sample rates, floating point DSP 3300 watt
• 2-way amplifier
• Can be controlled through WIFI
• 85-266V with PFC
• Intelligent sleep and wake-up<1 Z

---
