L-Acoustics Reveals Compact, Full-Range K3 Line Source System



The new K3 perfectly fits into the L-Acoustics K Series lineup between the K2 and Kara II


L-Acoustics rounds out its industry-leading K Series with the introduction of K3, the manufacturer’s smallest full-range enclosure, designed to deliver big sound for mid-size events with audiences ranging from 1,000 to 10,000. K3 provides full-range bandwidth without needing a flown companion subwoofer, and its highly efficient design reduces amplification needs. These features make K3 faster and simpler, as well as more sustainable and economical to deploy.

“K3 is ready for the events of today and tomorrow,” shares L-Acoustics Executive Director of Application Design Florent Bernard. “Our design team created a dual-12-inch-based system with the form factor and price of a 10-inch design, without the inherent performance compromises of 10-inch loudspeakers. K3 offers long-throw, full-range performance in a compact, accessible package, tailor-made for small to mid-capacity events, and venues that are the mainstay of most sound providers. It is a ‘no compromises’ tool, perfectly adapted to the current event landscape and, when paired with K1 and K2, is quickly and powerfully scalable for large-capacity events.”

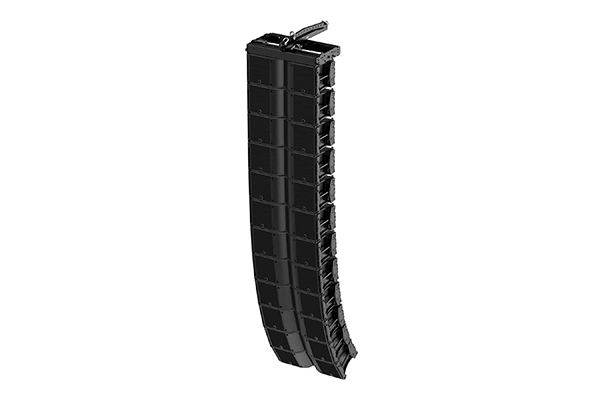

L-Acoustics K3, shown in a 12-enclosure array


Providing the full-range L-Acoustics contour from an enclosure that is 33% smaller than K2 and weighing only 43 kg (95 lbs), K3 is ideal for applications that require plenty of power and bandwidth from a small form factor, including mid-size tours, festivals, corporate events, religious services, and other productions. Dimensioned to keep sightlines clear, K3 integrates easily into venues with space restrictions.

The new two-way active WST enclosure possesses all of the hallmarks that have made K Series the reference in line array technology, including optimized mechanical design for reduced weight, laminar vents for powerful and linear low frequency response, and time-tested effortless rigging. K3 also features L-Acoustics Panflex technology, which provides sound designers with quick access to a choice of four horizontal directivity patterns: 70° or 110° symmetrical or 90° asymmetrical on either side. With Panflex and inter-element angles ranging from 0° to 10°, K3 line source coverage can be precisely tailored to fit any audience geometry.


The fixed-install-friendly L-Acoustics k3i, shown in a white eight-enclosure array


Without needing a dedicated subwoofer, K3 can be used as the main system for vocal and music reinforcement in most applications, or as a complement to K1 or K2 as outfills or delays. When deployed with KS28 subwoofers, K3 excels as a compact main system for sonically demanding live events.

With the first K3 production units already shipping to customers, L-Acoustics will deliver K3i, a fixed install version, in 2021. K3i will be suited for an even broader range of applications using a distributed approach.
