Installation Speakers

Installation Speakers for large and multi setting

Martin Audio CDD Series

This series is designed to deliver class-leading performance, fidelity and coverage consistency to venues that demand the ultimate in cutting-edge technology and style. Whether it is a live music clubs, music bars, nightclubs, bars and restaurants, museums and AV spaces, convention centres, hotels, retail outlets, leisure centres, houses of worship the CDD Series has it covered. CDD has been conceived as a one stop solution; six two-way full-range coaxial systems from the micro CDD5 to the powerful CDD15, complemented by high-performance subwoofers that cover the majority of installs.

The CDD Series has the audience covered too. Coaxial Differential Dispersion technology delivers more consistent audience coverage than systems with fixed dispersion X° x Y° horns — projecting more output to the rear of the audience to distribute sound evenly from front-to-back, while having wide horizontal coverage close-up. This increased coverage area can reduce the speaker count in larger installations.

Main Features include:

• Versatile, passive, two-way systems
• Coaxial ‘point-source’ performance
• Differential Dispersion technology
• for consistent coverage
• Elegant UPM Formi composite enclosures (except CDD5)
• User-rotatable coaxial drive units
• Vertical and horizontal mounting options
• Screw-free perforated steel grilles
• 8Ω nominal impedance
• Discreet mounting accessories
• Integral inserts for eyebolt suspension of CDD10, CDD12 and CDD15

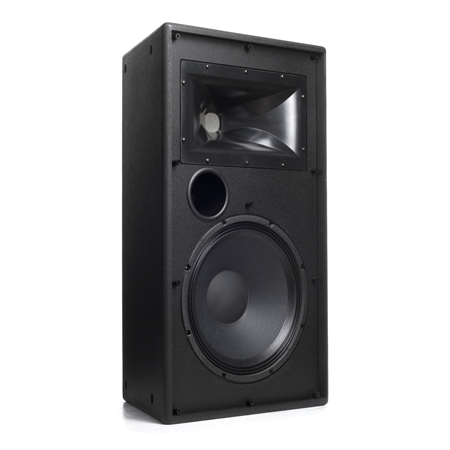

Klipsch KI Series II

The KI Series II permanent installation speakers address the specific needs and performance standards of the sound reinforcement industry with rock-solid reliability. The KI-102-II, KI-172-II, KI-262-II and KI-272-II speaker models specifically now have updated high-quality, heavy-duty drivers and larger voice coils for increased power handling and higher sensitivity.

All KI models use Klipsch’s proprietary Tractrix Horn technology, which provides unrivalled low-distortion clarity and detail while long-throw woofers produce powerful low frequency response. Because of Klipsch’s expertise in efficient speaker design, the KI Series II permanent installation speakers are able to provide maximum output with minimum wattage.

The addition of ellipses or “Mumps” moulded into calculated areas of the Tractrix Horn on the KI-102-II, KI-102-T-II, KI-172-II, KI-362-II and KI-396-II models further enhance coverage across the dispersion area of the horn.

Ideal for virtually all permanent sound reinforcement installations and production environments including theatres, houses of worship, school auditoriums, restaurants and nightclubs, the KI Series II permanent installation speakers deliver unrivalled performance and value.

Main Features include:

• Delivers a high continuous SPL
• Available in three finishes – black, white and a stainable raw
• Updated high-quality, heavy-duty drivers and larger voice coils for increased power handling and higher sensitivity.
• KI-102-II comes with a heavy-duty 60W transformer
• Provide maximum output with minimum wattage

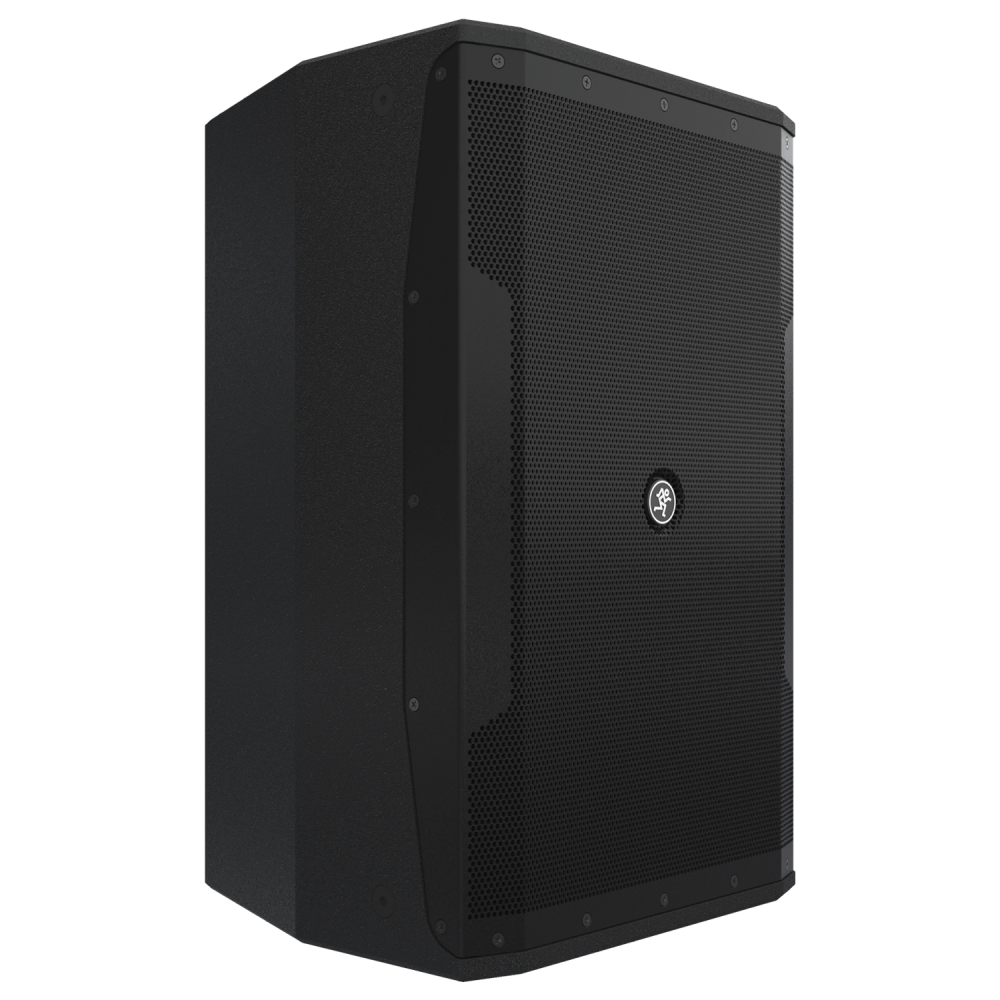

Mackie iP series passive speakers

Mackie iP series passive loudspeakers specially designed for installs seeking rich, articulate full-bandwidth response in a sleek compact design. The series includes three full-range models (10”, 12” and 15”) and a companion 18” subwoofer. The fullrange iP-10, iP-12 and iP-15 feature 8 x M10 rigging points and a rotatable 90 x50 horn to support both vertical and horizontal rigging. A rotatable center logo allows for clean presentation in all configurations.

Sonically, premium components include high-output, custom-designed woofers with large voice coils to handle more power for maximum output and premium 1.4″ titanium diaphragm compression drivers for smooth, consistent high-frequency response. Plus, convenient features like a choice of either Neutrik or terminal connections can simplify install, saving time and cost. A selection of mounting accessories delivers additional placement flexibility. Available are both a ceiling and wall-mount bracket to meet the needs of nearly any install application. The optional SP260 2 × 6 Speaker Processor feature pre-sets specifically for iP loudspeaker for quick setup and flawless sonic performance.

An affordable install solution, Mackie iP Series loudspeakers meet the needs of a wide range of install applications including Houses-of-Worship, theatres, auditoriums, casinos, clubs and karaoke rooms.

Main Features include:

• Designed to meet the demands of an installed PA
• Top cabinets available in 10″, 12″, 15″ for the perfect system
• Rigging points built in for easy install
• Rotatable horns make light work of coverage complications
• 18″ subwoofer makes 2- and 3-way system configuration possible
• Comes with large voice coils
• Handle more power for maximum output and premium 1.4” titanium diaphragm
• Compression drivers for smooth, consistent high-frequency response
• Convenient features like a choice of either Neutrik or terminal connections can simplify an install, saving time and cost.

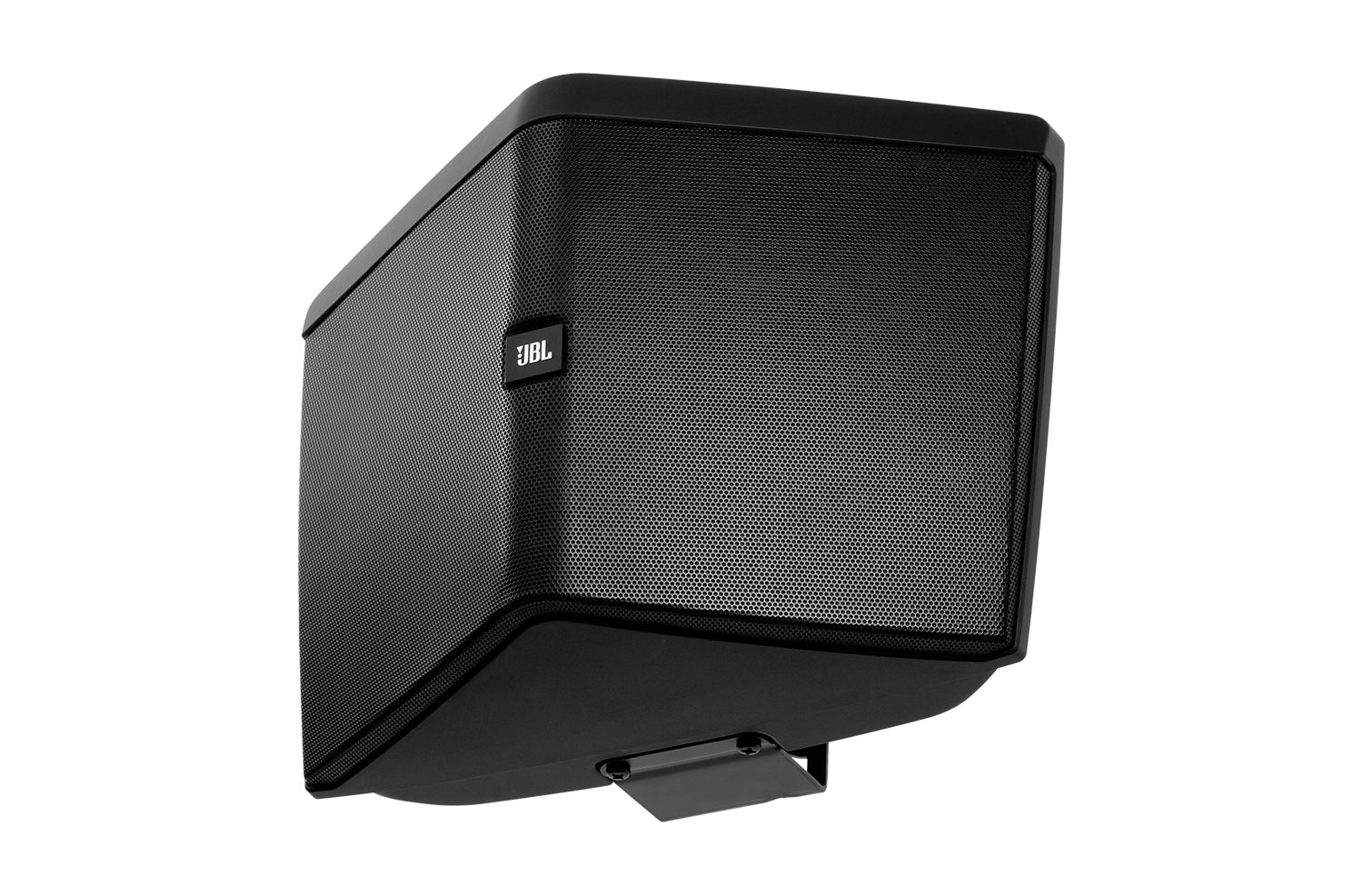

Harman HST Wide-Coverage speakers

The patent-pending design includes a wall-facing woofer, two horizontally splayed tweeters, a wall bracket that spaces the speaker the required distance from the wall, and a tapered cabinet that provides proper loading and dispersion of the sound. With most on-wall (surface-mount) speakers, the baffle of the speaker is some distance from the wall. It is the nature of low and low-mid frequency sound waves to wrap around the speaker, where they reflect back out from the wall, recombining with the original sound. When this occurs, some frequencies add coherently to the original sound and other frequencies cancel, causing peaks and dips in the resulting frequency response and inconsistencies from location to location within the listening space. By substantially reducing this occurrence, Control HST is able to provide a flatter resulting frequency response along with a more consistent sound character throughout the room. The JBL Control HST is ideal for a wide variety of applications including retail stores, restaurants, educational facilities, leisure venues, hotels and other music and music/paging uses. The Control HST is IP34 water-resistant rated, enabling its use as an outdoor loudspeaker.

Main features include:

• Frequency Range (-10 dB) 50 Hz – 20 kHz
• Frequency Response (±3 dB) 68 Hz – 18 kHz
• Coverage Pattern 180° H x 160° V (1 kHz – 2 kHz, nominal)
• 160° H x 150° V (ave, 1 kHz – 16 kHz)
• Directivity Factor (Q) 5.4 (1 k – 16 kHz)
• Directivity Index (DI) 7.2 dB (1 k – 16 kHz)
• Sensitivity (2.83V @ 1m) 88 dB (Ave. 80 Hz – 20 kHz)
• Maximum SPL Direct 8Ω: 108 dB (peaks of 114 dB)
• 60 W Tap: 97 dB @ 60W
• Crossover Network - 1.6 kHz, 3rd order (18 dB/oct) high-pass to HF, 2nd order low-pass to LF
• Nominal Impedance - 8 ohms
• Transformer Taps - 70V: 60W, 30W, 15W, 7.5W
• 100V: 60W, 30W, 15W
• Low Frequency Driver - CMMD ceramic metal matrix diaphragm cone, 25 mm (1 in) voice coil.
• High Frequency Drivers - Two splayed tweeters with CMMD-treated aluminium diaphragms, polyurethane surround polyimide bobbin, neodymium magnet, and fluid-cooling.
• Four M6 points for included U-bracket with additional M6 insert point provided for adding secondary safety attachment cable. U-bracket must be utilized.
• Aluminum grille, painted to match cabinet color.
• Input Connection - Removable locking euro-block 4-pin connector with screw-down terminals for bare wire. Two pins for input and two pins for parallel loop-thru. Max. wire 12 AWG (2.5 mm2).
• Net Weight - 3.6 kgs (8.0 lb), 4.3 kgs (9.5 lb) with U-bracket

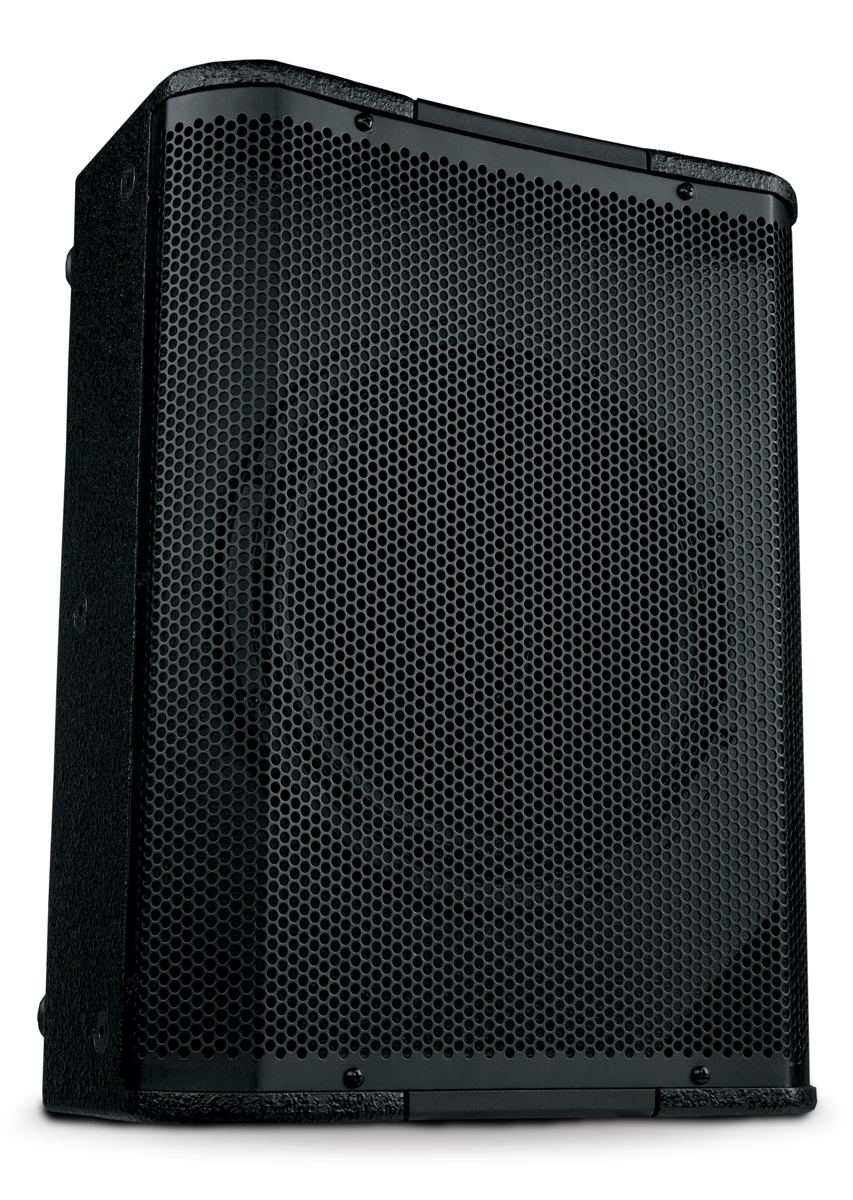

QSC The Acoustic Performance series

Last year QSC added two new models AP-4122m and AP-212sw to the popular Acoustic Performance loudspeaker series. Consisting of a multipurpose 12” coaxial loudspeaker and a dual 12” subwoofer, these additions expand the Acoustic Performance series with high versatility and performance in mind. The new AP-4122m is a 12-inch two-way coaxial system with 40 and 60 degree wedge angles, top hand hold, pole cup, and M10 fittings for flown or yoked applications. The coaxial design delivers true source point performance with 90 degrees of conical DMT coverage. DMT (Directivity Matched Transition) matches the HF to the natural conical performance of the woofer at the crossover point. This innovation provides a smooth power response both on and off axis, resulting in better sound within real rooms. AP-212sw is a dual 12-inch direct radiating subwoofer specifically designed to complement the full range Acoustic Performance models. The AP-212sw features four hand holds, an optional caster kit for ease of transport, two M20 pole mount plates (top/side), and a unique input plate having two NL4 connectors in a crossed configuration. This input plate feature allows a single NL4 cable to power both sub and top without the need for a custom turn cable. The highly versatile AP-212sw matches the width of the popular AP-5122m and new AP-4122m allowing for elegant stacked or pole mounted solutions. When deployed horizontally, the AP-212sw is just 15 inches tall, making it ideal for under riser deployments.

This series delivers QSC loudspeaker design philosophies to installations requiring high SPL and full bandwidth performance. These highly versatile installation loudspeakers maintain their remarkable sonic signature even at high output levels. Acoustic Performance is perfectly suited for houses of worship, dance clubs, themed entertainment, or other high SPL demanding installations.

Main Features include:

• DMT (Directivity Matched Transition) in 2-way models ensures smooth, coherent power response across the listening plane
• 3” diaphragm compression driver (1.75” on AP-4122m) delivers a clean and powerful high frequency response
• Bi-amp / passive switchable (passive only on AP-4122m), except AP-212sw subwoofer
• 16-gauge powder coated steel grilles
• NL4 Speakon connector (two on AP-4122m and AP-212sw) and covered barrier strip terminals (except AP-4122m and AP-212sw)
• Constructed from 15-ply Baltic birch plywood (15 mm Baltic birch plywood on AP-4122m and AP-212sw)
• Clean industrial design with unadorned grilles complement most decors and settings
• Two M20 pole attachment points on AP-212sw

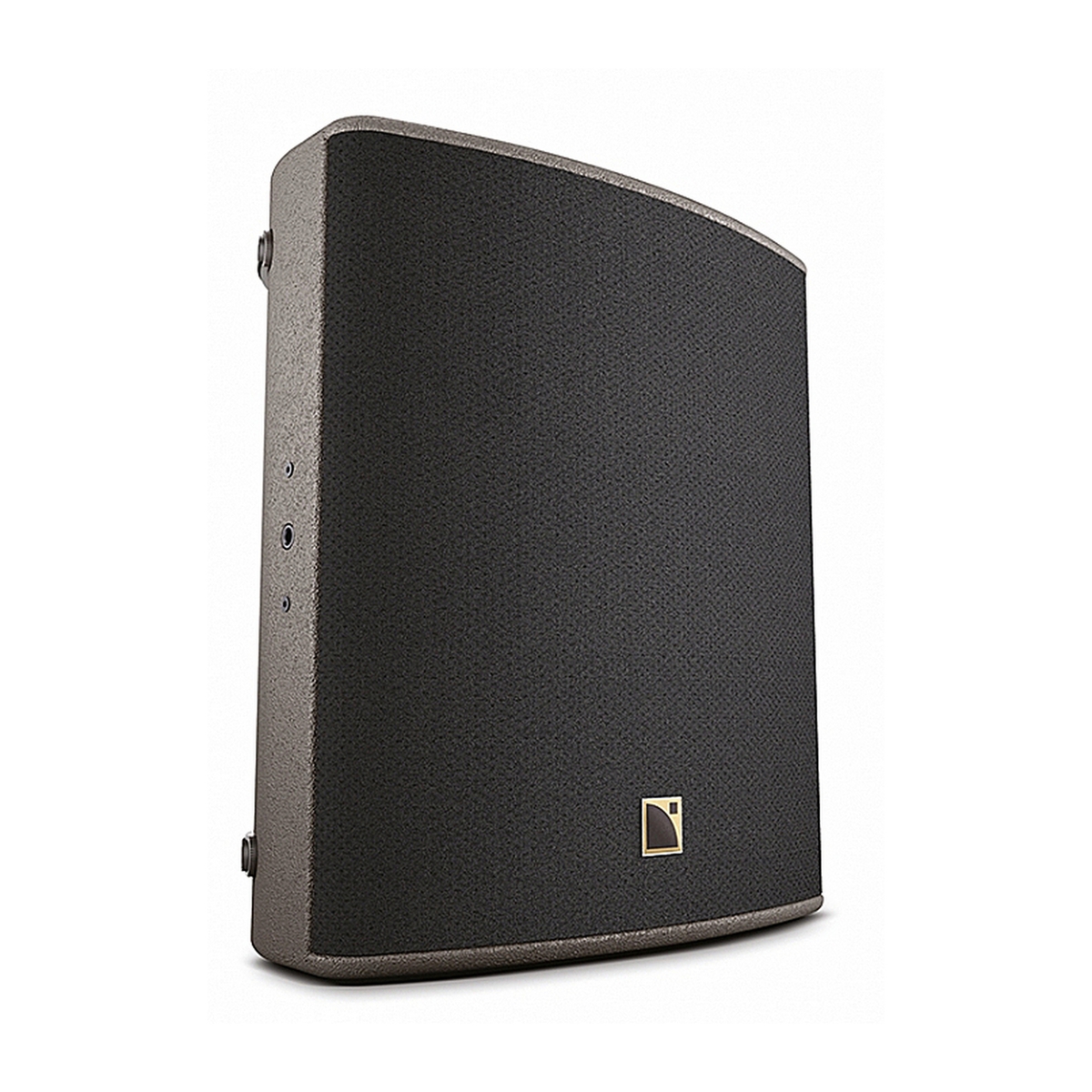

L acoustics X 12

Last year L acoustics has launched the X Series three new models X8, X12 and X15 out of which X12 is an install speaker which can be used in multiple applications in rental and installation. The X12 features a 3’’ diaphragm compression driver coaxially loaded by a 12’’ low frequency transducer in a bass-reflex enclosure with laminar vents. The internal passive crossover network uses custom filters. The X12 can be flown or mounted for multi-channel, distributed or fill applications but is powerful and rugged enough to be deployed as a stage monitor. Its ellipsoid directivity of 90° x 60° gives optimal coverage for a multitude of situations, and the compact footprint allows it to be discreetly integrated into any architecture or scenery, preserving sightlines for the audience. The X12’s passive design gives it maximum efficiency, reducing the need for amplified controllers.

The X12 is easy to rig or mount in any situation. Integrated risers allow for a 35° or 55° angle on stage, and a wide range of rigging accessories offers infinite install possibilities. No matter what sound job is required, the X12 is a valuable, versatile tool in the sound engineer’s toolbox.

The X12 can be pole-mounted using the integrated socket or flown and tilted in various orientations using its rigging accessories. The amplified controllers L-Drive parameters ensure the linearization and protection of the transducers.

Main Features include:

• Ellipsoid directivity of 90° x 60° for FOH
• Shape, size and RAL color for easy integration
• Low weight and ergonomics for handling
• Complete range of rigging accessories
• Passive design, optimized amplified controller quantum
• 20 kgs / 55 lbs,
