Moving Heads



Moving Heads have become a standard in the live event industry, at concerts, clubs, music festivals and even churches. These well engineered moving head lights provide not only lights, but also color, intensity, texture, sharpness and add a touch of magic to a set or a live show.

PT brings to you some of the moving heads launched in 2019-2020.


Wash

These moving heads have a soft edge and are usually used when there is a need to light a large area. The wash is primarily a unit that focuses only on color changing.

Altman AP-150 RGBW LED


The AP-150-RGBW is a compact, lightweight 135-Watt RGBW LED par wash light that is packed with a high feature set at an affordable price.

Main Features include:

  • 1660 max lumens
  • RGBW LED color configuration
  • Lightweight, 11.2 lbs. (5.08 kg)
  • 8-inch color frame slot with locking tab
  • 100 to 240 VAC 50/60 Hz operation with PowerCON
  • Up to 30 Hz Strobe rate
  • DMX 5-pin in and through
  • Compatible with DMX 512 and RDM protocols
  • On-board, simple-to-use user interface - with keypad lockout security features
  • Four different control settings of: 16 Bit/8 Bit/RGB/HSIC
  • Progressive output management allowing for active cooling settings from the luminaire or DMX control
  • Color calibration system
  • Multiple dimming profiles
  • Tech Identify feature to easily identify fixture location
  • On-board status indicator lights
  • On-board factory set and customer defined color presets
  • Preset white select set point settings
  • cETLus listed CE marked for indoor use

Technical Specification:

  • Materials: Corrosion-resistant materials and hardware
  • Control: DMX/RDM
  • Light Engine: 135 Watt RGBW (White=6500K)
  • Rated LED Life: Arrays are rated for >50,000 to L70
  • Input Voltage: 100-240 VAC 50/60 Hz
  • Current Draw: 1.13A at 120VAC / 0.58A at 230VAC
  • Current Inrush: At 240 VAC, 40A (1/2 cycle) @25°C
  • Quiescent Load: 0.082 AMP (9.84 Watts) @ 120 VAC*; 0.041 AMP (9.84 Watts) @ 240 VAC*; *Fan and display off
  • Power Factor: ≥ 0.95
  • Power Through: Up to 9 Units at 120VAC*; Up to 14 units at 230 VAC*;  * Power linking is only for connecting; AP-150-RGBW Pars only, not other products or equipment.
  • LED Engine Cooling: Active with progressive output management
  • Environment: 0 to 40 degrees C (32 to 104 degrees F) with humidity of 5%-95%; (non-condensing)

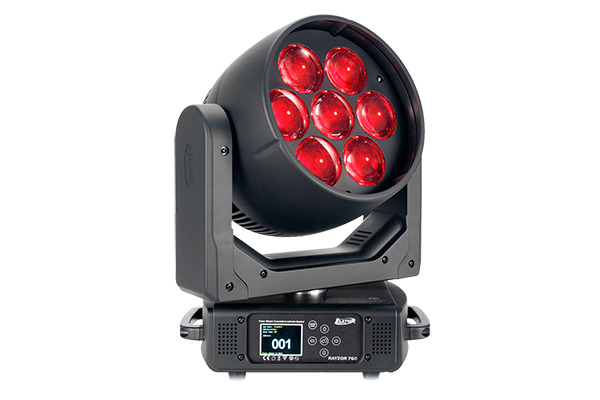

Elation Rayzor 760


The Rayzor 760 is a compact yet extremely powerful Wash Effects fixture featuring Elation’s unique SparkLED system and fast continuous Pan and Tilt motion. With its wide zoom range from 5° to 77° it provides iQntense and well-defined mid-air beams.

Main Features include:

  • LED Wash Effects Fixture
  • 7x 60W OSRAM RGBW LED with Pixel Control
  • 28x 2W SparkLED Effect with Pixel Control (patent pending)
  • Extreme Zoom – 5° for Mid-Air Beam to 77° for Even Washes
  • Fast and Precise 360° Continuous Pan and Tilt Rotation
  • Beam FX and Smooth Wash Fixture in a Compact Housing

Technical Specification:

Source:

  • (7) 60W Osram RGBW LEDs
  • (28) 2W White SparkLED
  • 50,000 Hour Average LED Life

Photometric Data:

  • 8,400 Total Lumen Output
  • CRI 80
  • Zoom Range 5° - 77°
  • Beam Angle 5.4° - 57.3°
  • Field Angle 7.4° - 73.3°

Effects:

  • Motorized Zoom
  • Linear Color Temperature Presets (2,700 - 8,000K)
  • RGBW Color Mixing and Pixel Control
  • White SparkLED Lens Effect
  • Color Presets and Macros
  • Electronic Strobe and Variable Dimming Curves
  • 16-bit Dimming

Control / Connections:

  • 3 DMX Channel Modes (25 / 52 / 80)
  • 360° Continuous Pan and Tilt Movement
  • 900 - 25,000 Hz DMX Adjustable Refresh Rate
  • 6 Button Touch Panel
  • Full Color 180° Reversible LCD Menu Display
  • DMX, RDM, Art-NET, and sACN Protocol Support
  • 5pin XLR DMX In/Out
  • RJ45 Ethernet In/Out
  • Locking Power Cable In/Out
  • USB Connection (Firmware Updates)
  • With Wired Digital Communication Network

Electrical / Thermal:

  • AC 100-240V - 50/60Hz
  • 700W Max Power Consumption
  • 14°F to 113°F (-10°C to 45°C)
  • BTU/hr (+/- 10%) 2216.5

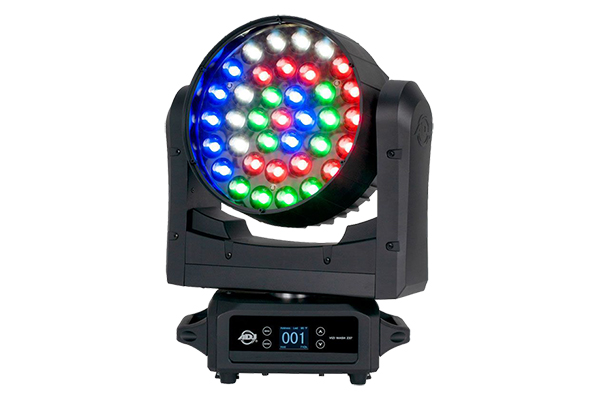

ADJ Vizi Wash Z37


The Vizi Wash Z37 is a 740W professional moving head wash fixture with variable motorized zoom (10 ~ 60-degrees) and thirty-seven 20W Quad (RGBW / 4-IN-1) LEDs.

Main Features include:

  • Electronic Dimming 0-100%
  • DMX-512 protocol
  • Multiple DMX Channel Modes
  • Locking 3-Pin and 5-Pin XLR Connectors In/Out
  • Pixel Zone Control
  • Zoom Adjustment
  • Gamma Adjustment
  • 6 Dimmer Curves With Dimmer Adjustment Speed
  • Multiple Unit Power Linking

Technical Specifications :

Light Source:

  • 37x 20W RGBW (4-IN-1 - Red, Green Blue & White) Osram LEDs
  • 20,000 Hour Average LED Life
  • LUX @ 5M: 15000 lux @ 10-degrees; 1100 lux @ 60-degrees

Effects:

  • 11-zone Ring Control with Color Macros
  • Variable Strobe & Pulse effects

Connections:

  • Seetronic locking power In/Out to daisy chain power
  • 3-pin and 5-pin DMX connections for data linking
  • RDM (Remote Device Management)
  • USB Input for Updating Fixture Firmware

Control:

  • Motorized Linear Zoom: 10 ~ 60-degrees
  • 4-button Touch Control Panel with Large LED Screen
  • Control: DMX-512 & RDM
  • Multiple DMX Channel Modes
  • Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre & Stage 2)
  • Dim Speed control (0.1~10 Seconds)
  • Dimming: 0 - 100%
  • Strobe & pulse control
  • Various Strobe speeds (1-40Hz)
  • Adjustable LED Refresh Rates (900~25k Hz)
  • Adjustable Gamma Settings (1.0-2.8)
  • 16-bit fine zoom control
  • 16-bit fine pan control
  • 16-bit fine tilt control
  • Color display with touch button on two sides
  • With Wired Digital Communication Network

Electrical:

  • Input Voltage: 100-240V 50Hz/60Hz (Auto Sensing)
  • Power Draw: 525W, 4.375A @ 120V or 700W 3A @ 230V

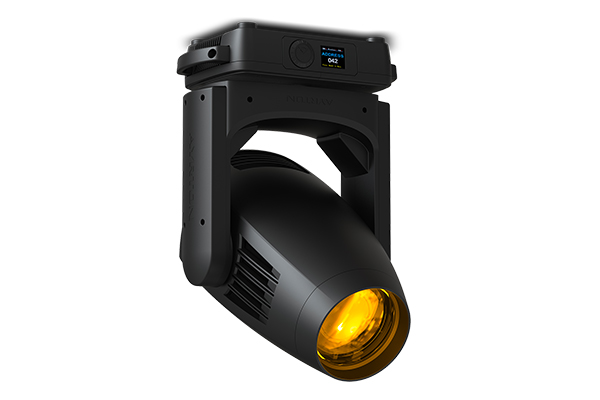

Ayrton Levante 300W LED


TLEVANTE is a non-waterproof moving head wash light (IP20 protection rating) using the latest generation of high-performance of LED-type lamps. This luminaire can be controlled remotely by an external DMX512 signal.

Main Features include:

  • Graphic LCD display for addressing and special functions settings, with flip function
  • Clicking jog wheel to set functions
  • Excess-temperature protection
  • Integrated wireless CRMX TiMo RDM receiver from LumenRadio
  • XLR 5 pin male and female connectors for DMX connection
  • powerCON TRUE1 male and female connectors for power connection

Technical Specifications :

Optical:

  • High-efficiency optical system
  • Opening angle of the beam: 7,5° to 56°

Light Source:

  • White LED module – Color temperature output: 6,500K LEVANTE-S / 5,700K LEVANTE-TC
  • Brightness: up to 17,500 lumens (LEVANTE-S). 14,000 lumens (LEVANTE-TC)
  • Estimated lifespan of LED emitters: 50,000 hours
  • Guaranteed “no-flicker” effect perfectly suited for television applications and all video recorded events

Colors:

  • CMY color mixing + CTO
  • 1 color wheel: 7 dichroic filters + open

DIMMER, STROBE

  • Electronic dimmer for light adjustment from 0 to 100% without color change (16-bit)
  • High-speed strobe effect in white or color at 1 to 25 flashes/second
  • Pre-programmed variable strobe effects

Gobo Size:

  • 1 gobo wheel: 7 interchangeable rotating gobos – Metal Gobos
  • GOBO size: 25mm diameter
  • Image size: 19mm diameter

Control:

  • USITT DMX512
  • Automatic features for managing your luminaire without a DMX console
  • DMX RDM-compatible
  • Clicking jog wheel
  • DMX512 input/output
  • Choice of 3 DMX modes (from 29 to 50 channels)
  • Wireless System: LumenRadio wireless CRMX RDM receiver

Power Supply:

  • Electronic power distribution with Power Factor Correction (PFC) from
  • 110-240 VAC, 50/60 Hz
  • 550-Watt maximum power
  • Power supply via powerCON TRUE1 connector
  • Supplied power cable without plug
  • Optional battery for addressing without external power source: Li-ion ICR14500 ≥ 350mAh – 3,7V

Cooling:

  • Advanced forced-air cooling system
  • Self-adjusting fan for reduced noise level (in AUTO mode)
  • User-selectable air-cooling modes

Beam

A beam produces a thin laser like light through the air and is used in live events for overall brightness.

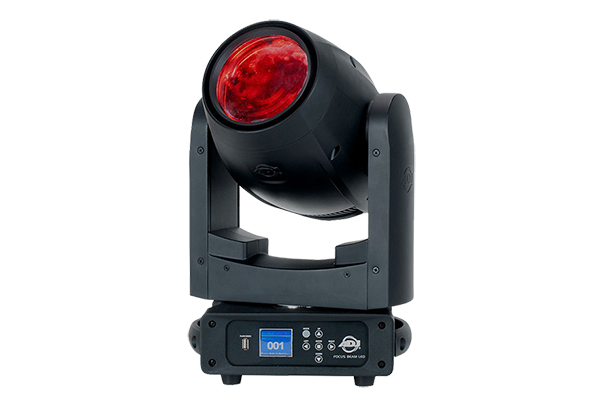

ADJ Focus Beam


The Focus Beam LED uses a powerful 80W LED engine to produce a powerful, 7400K, 2.5-degree beam from an advanced optical system. This fixture features motorized focus, two prism effects, and it has a built-in in frost filter for wash effects.

Main Features include:

  • Control Protocol: DMX & RDM
  • DMX Modes: 2 (16 & 18)
  • Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre & Stage 2)
  • Dim Speed control (0.1~10 Seconds)
  • Dimming: 0 - 100%
  • Strobe & pulse control
  • Motorized Focus
  • Linear Frost 0-100% (Wash effect)
  • 2 Prisms: 6 & 8 Facet, Indexable and Rotatable
  • USB firmware update port
  • Adjustable LED Refresh Rates (900~25k Hz)
  • Adjustable Gamma Settings (1.0-2.8)
  • With Wired Digital Communication Network

Technical Specifications (ARCS WIDE):

Light Source:

  • 1x 80W Cool White LED Engine
  • 2.5° Beam Angle
  • Color Temperature: 7400K
  • 50,000 Hour Average LED Life

Display:

  • Touch display with 5-button touch menu

Color Wheel:

  • 13 dichroic colors + white

GOBO Wheel:

  • Metal wheel with 15 fixed GOBOs + Open
  • GOBO shake effect

Prism Wheel:

  • Prism Wheel 1: Rotatable 8-facet Circular
  • Prism Wheel 2: Rotatable 6-facet Linear
  • Prism Indexing with overlay feature

Control:

  • Control Modes: DMX512, RDM & Stand-Alone Internal Programs
  • 2 DMX Channel Modes: 16 & 18 channels
  • 16-Bit Pan, Tilt & Dimmer control

Connections:

  • DMX Connections: 5-pin Locking XLR In & Out
  • Power Connections: Seetronic Locking Power In & Out

Pan/Tilt:

  • Pan & Pan Fine: 630 degrees
  • Tilt & Tilt Fine: 270 degrees

Electrical:

  • Multi-voltage operation: AC 100-240V, 50-60Hz (Auto Sensing)
  • Maximum Power Consumption: 136W @ 120V
  • Daisy chain: 15 units @ 120V; 30 units @ 230V

Dimensions & Weight:

  • Dimensions (LxWxH): 10.96” x 7.55” x 17.61” / 278x191x447mm
  • Weight: 27 lbs. (12.25 kg)

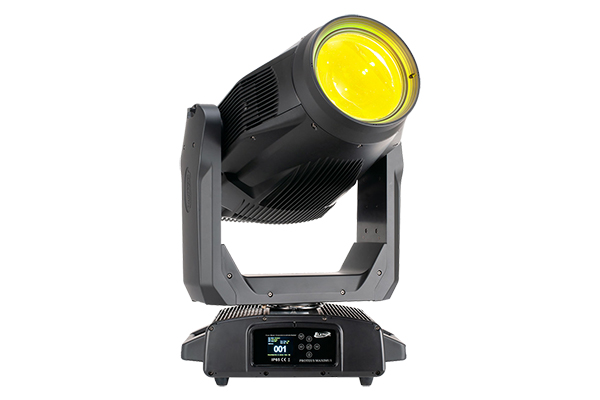

Elation Proteus Maximus


The Proteus Maximus is an extremely bright IP65 rated LED Profile fixture offering outstanding projection, beam qualities in any environment. Providing up to 50.000 lumens from its custom designed 950W 6,500K LED engine, the Proteus Maximus is the ideal fixture for any outdoor application requiring superior output, bright and powerful beams, quiet operation as well as stunningly precise gobos and colors.

Main Features include:

  • High Efficiency 950W 6,500K White LED Engine
  • Up to 50,000 Total Lumen Fixture Output
  • CMY Color Mixing and Variable CTO 6 Position Color Wheel, High CRI, UV filter
  • Complete FX System featuring Rotating and Fixed Gobos, Animation, Iris, Dual Prism, Dual Frost
  • Indexable Full Blackout Framing System
  • Wide Zoom Range from 5.5° to 55° / Large 180mm Front Aperture
  • FIL (Form In Lay) Polyurethane Foam Packaging Included

Technical Specification:

Source:

  • 950W 6,500K Bright White LED Engine
  • 30,000 Hour Average LED Life

Photometric Data:

  • 50,000 Total Lumen Output
  • CRI 70+ (82+ with HCRI Filter)
  • 2:1 Hotspot Ratio
  • Zoom Range 5.5° - 55°
  • Beam Angle 4.8° - 41.2°
  • Field Angle 6.1° - 51°

Effects:

  • Motorized Zoom (Large 180mm Front Aperture)
  • 4 Rotating Full Blackout Framing Blades
  • +/-45° Framing Indexing
  • Full 360° Bi-Directional Animation Wheel
  • 4-Facet and Linear Rotating Prisms
  • 2 Variable Frost Filters (Light and Wash)
  • Internal Color, Framing, Prism, and Frost Macros
  • Motorized Iris with Variable Pulse Effects
  • Variable 16-bit Dimming Curve Modes
  • High Speed Electronic Shutter and Strobe
  • DMX Controllable LED Refresh Rate

Color:

  • CMY Color Mixing
  • Linear CTO Color Correction
  • 6 Dichroic Colors including High CRI Filter and UV

Gobos:

  • 2 Gobo Wheels
  • 6 Rotating / Indexing Interchangeable Glass Gobos
  • 7 Static Glass Gobos

Control / Connections:

  • 2 DMX Channel Modes (37 / 61)
  • 16-bit Pan, Tilt and Dimming Control
  • Motorized Focus and Auto-Focus Presets
  • DMX, RDM, Art-NET, sACN Protocol Support
  • (6) Button Touch Control Panel
  • Full Color 180° Reversible LCD Menu Display
  • Hibernation Mode (Power Save)
  • 5pin XLR DMX In/Out
  • IP65 RJ45 ethernet In/Out
  • IP65 Locking Power Cable In
  • With Wired Digital Communication Network

Size / Weight:

  • Length: 18.0 in (458mm)
  • Width: 23.3 in (591mm)
  • Height: 32.5 in (825mm)
  • Weight: 117 lbs. (53kg)

Electrical:

  • AC 120-240V 50/60Hz
  • Max Power Consumption 1,400W
  • 14°F to 113°F (-10°C to 45°C)

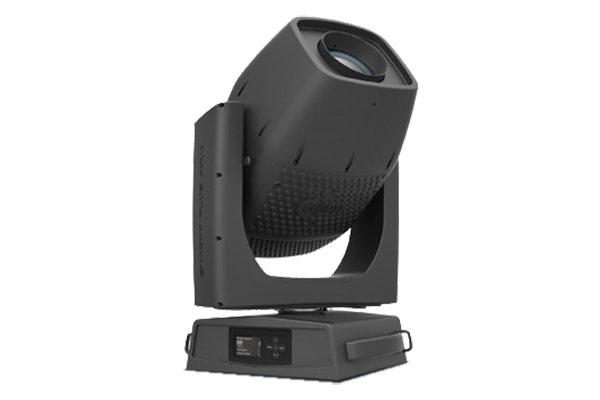

Claypaky Sharpy Plus Aqua Beam


The SHARPY PLUS AQUA luminaire is an IP65-rated moving head fixture perfect for outdoor events, touring, permanent installations, cruise ships, and much more. The SHARPY PLUS AQUA fixture offers two distinct operating modes – beam or spot.

Main Features include:

  • Moving head fixture for outdoors (IP65 protection rating)
  • Source: Osram Sirius HRI 330W X8 arc lamp
  • Two projection modes: Beam and Spot
  • 3°- 36° linear zoom in both modes
  • CMY colour mixing | 15 colours on 3 wheels | 2 CTO filters
  • Rotating Gobo Wheel: 8 glass gobos
  • Static Gobo Wheel: 18 static gobos (including 6 beam reducers)
  • Rotating 4-facet prism on dedicated channel
  • Rotating 8-facet prism on dedicated channel
  • Animation Wheel
  • Linear, soft edge frost filter
  • Dimmer and stop/strobe

Technical Specification:

Power Supplies:

  • AC 100 - 240V, 50/60 Hz
  • Power input Neutrik-PowerCon True 1 (IP65)

Input Power:

  • 560 VA @230Vac - 50Hz

Light Source:

  • 330W X8 HRI Sirius Osram arc lamp

Optics:

  • 3°- 36° Electronic Linear Zoom
  • Motoried Focus system

Color System:

  • CMY colour mixing
  • 15 colours on 3 wheels
  • 2 CTO filters

Effects Section:

  • Rotating Gobo Wheel: 8 interchangeable glass gobos
  • Static Gobo Wheel: 18 static gobos
  • Six beam reducers (down to 0.5°)
  • Rotating 4-facet prism on dedicated channel
  • Rotating 8-facet prism on dedicated channel
  • Dynamic Animation Wheel
  • Linear soft edge frost filter
  • Dimmer and stop/strobe
  • Dense, Sharp, Parallel Light Beams
  • Extremely quick movements
  • Excellent visual effect projections
  • Wide and sharp aerial effects

CONTROL AND PROGRAMMING

  • 31 DMX control channels
  • Control signal: USITT DMX 512
  • Protocols: RDM, WebServer and Art-Net

BODY

  • IP65 Rating
  • Aluminum and steel structure with plastic covers
  • Two side handles for transportation
  • Device locking PAN and TILT mechanisms for transportation and maintenance

WEIGHT

  • 37.5 Kg (82,8 lbs)

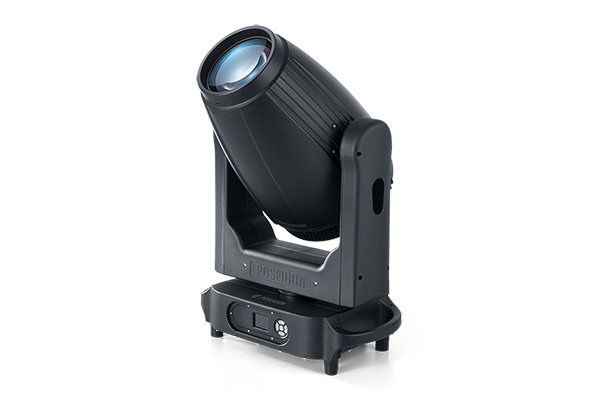

CLF Poseidon Beam


The CLF Poseidon is a powerful outdoor beam fixture that has been developed for smooth CMY color mixing. The Poseidon comes with a fast and accurate feature set including a double prism, gobo wheel, animation section and frost.

Main Features include:

  • Smooth CMY Color Mixing
  • Ip65 Rating
  • Gobo Wheel with Animation Range
  • Double Prism
  • Frost
  • 190mm Wide Lenss

Technical Specification:

Power

  • Input voltage: 100 – 240 VAC, 50/60HZ
  • Standby power 550W
  • Total power consumption 650W
  • Typical current 2.83A
  • Power plug type Seetronic Powercon TRUE

Source

  • Lamp Ushio 400W
  • Lamp hours 4000
  • Color temperature 7300K

Optical

  • Beam angle: 1.8°

Photometric

  • Output @10M” 564000 Lux
  • Output @50M: 25400 Lux

Effects

  • Color: CMY

14 + open color wheel

  • Gobo: 14 + open fixed gobo wheel
  • Prism: 8-facet round, 16-facet round
  • Frost: 6° wash
  • Dimmer 0-100%
  • Shutter: 12 hz/second, random
  • Pan: 540°
  • Tilt: 240°

Heat Management

  • Cooling type: Regulated Fans
  • Max. ambient temp.: Ta max=40°C
  • Min. ambient temp.: Ta min=-20°C

Control

  • Control protocol USITT DMX512/1990
  • DMX channels: 17
  • RDM: Yes
  • WDMX: Yes
  • DMX Input: 5-pin
  • RDM: Yes

Hardware

  • Interface: LCD Display
  • Software upload DMX, via special box

Installation

  • Mounting orientation : Any
  • IP rating: IP65

Housing

  • Safety attachment point: Yes
  • Position lock: Tilt

Physical

  • Net product weight: 35kg
  • Length: 726mm
  • Width: 488mm
  • Height: 312mm

Spot

Spots are generally used for highlighting specific objects and spaces or to provide general texture.

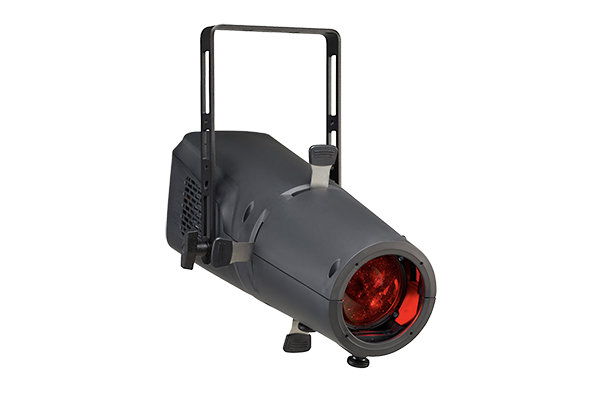

ETC ColorSource Spot Jr


The ETC ColorSource Spot Jr brings a four-color light engine at a fraction of the cost and a fraction of the size. Using a mix of red, green, blue, and lime LED emitters, the ColorSource Spot Jr offers an amazing range of color..

Main Features include:

  • ETC’s RGB-L array (red, green, blue and lime)

    - Also available in Deep Blue, which replaces the blue LEDs

  • with indigo for rich, saturated blues and magentas
  • Simple user interface with seven-segment display
  • powerCON in and thru
  • DMX/RDM in and thru (5-pin XLR)
  • LED droop compensation
  • Optically calibrated
  • Built-in zoom

Technical Specifications (ARCS WIDE):

Source:

  • LED details : 52 Lumileds LUXEON C LED
  • Max lumens : Standard: 5,708; Deep Blue: 5,426
  • Max lumens per watt : 44.8
  • L70 rating (hours to 70% output) : >54,000 hours (both variants)

Color:

  • Colors used : Standard: Red, green, blue, lime; Deep Blue: Red, green, indigo, lime
  • Color temperature range : Color mixing
  • Calibrated array : Yes
  • Red shift : No

Optical:

  • Beam angle range : Built in 25-50-degree zoom
  • Gate size : 50 mm
  • Aperture size : 6.25”-14”
  • Pattern projection : Yes
  • Pattern size :  M (OD 66 mm, ID 48 mm), up to 2.03 mm (0.080 in) thick
  • Camera flicker control/Hz range : 1,200 Hz (default) and 25,000 Hz (via RDM)

Control:

  • Input method : DMX512 via 5-pin XLR
  • Protocols : DMX512/RDM
  • Modes (footprint) : 4 modes, see page 10
  • RDM configuration :  Yes
  • UI type : Seven-segment, three-button interface
  • Local control : Yes
  • Onboard presets : Yes (12)
  • Onboard sequences : Yes (5)
  • Onboard effects : No
  • Fixture-to-fixture control : Yes
  • Notes : 15-bit virtual dimming engine

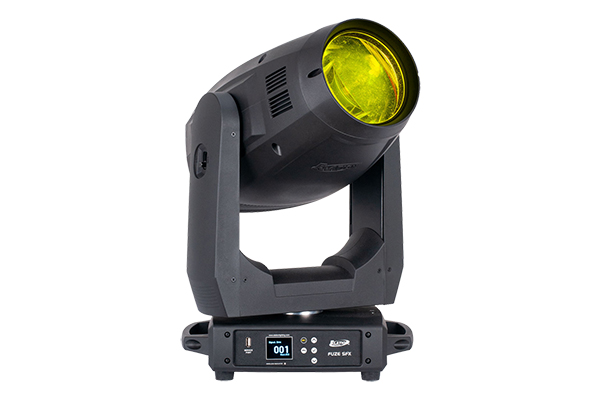

Elation Fuze SFX Spot


The FUZE SFX is a new concept LED Spot FX fixture designed for a variety of applications requiring a compact and powerful multi-purpose luminaire. The SFX is capable of projecting tight beams to wide washes using a highly efficient optical design while providing over 12,000 lumens of output from its 300W white LED engine.

Main Features include:

  • 300W LED 6,600K White LED Engine
  • 12,000 Total Lumen Fixture Output
  • Spot and Effects Fixture
  • Zoom Range from 4.5° to 38°
  • Variable CMY and 7-Position Color Wheel
  • High CRI and CTO Filter
  • 8 Rotating and 10 Fixed Gobos
  • Dual Independent Prisms for Layering
  • Motorized Iris
  • Variable Wash Frost Filter

Technical Specification:

Source:

  • 300W 6,600K Bright White LED Engine
  • 20,000 Hour Average LED Life

Photometric Data:

  • 12,135 Total Lumen Output
  • CRI 68+
  • Zoom Range 4.5° - 38°
  • Beam Angle 4.6° - 38.2°
  • Field Angle 5.6° - 42.2°

Effects:

  • Motorized Zoom
  • Remote Focus
  • Variable Frost Filter
  • Dual Independent Prisms (6 Facet linear & 6 Facet round)
  • Motorized Iris
  • Variable 16-bit Dimming Curve Modes
  • High Speed Electronic Shutter and Strobe

Color:

  • CMY Variable Color Mix
  • 7 Position Color Wheel
  • High CRI Filter, CRI 84
  • CTO Filter, 3200K, CRI 77

Gobos:

  • 2 Gobo Wheels
  • Wheel #1 with 8 Rotating / Interchangeable Glass Gobos
  • Wheel #2 with 10 Static Gobos

Control / Connections:

  • 31 DMX Channels
  • 16-bit Pan, Tilt, and Dimming Control
  • DMX Adjustable LED Frequency
  • DMX, RDM, E-FLY Wireless, Art-Net, sACN Protocol Support
  • 4 Button Touch Control Panel
  • Full Color 180° Reversible LCD Menu Display
  • Locking 5pin XLR Connector In/Out
  • Locking RJ45 Ethernet Connector In/Out
  • IP65 Locking Power Connector In/Out
  • USB Connection (Firmware Updates)
  • With Wired Digital Communication Network

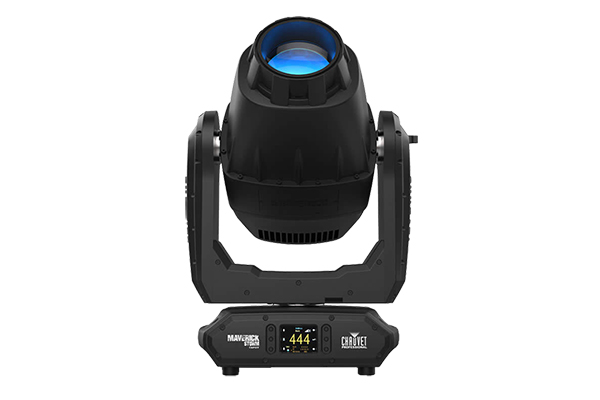

Chauvet Professional Maverick Storm 1 Spot


Maverick Storm 1 Spot is a IP65-rated Cool White LED moving head that features a compact and rugged die-cast aluminum housing built with marine grade stainless steel screws to withstand even the harshest elements.

Main Features include:

  • 480W LED yoke spot fixture including a color wheel, animation wheel, 6.5:1 zoom, a static and rotating gobo wheel
  • 16-bit dimming of master dimmer for smooth control of fades
  • Variable CMY + CTO color mixing system to create a wide pallet of colors
  • 5 facet prism
  • Independent light and medium frosts for beam control
  • Animation wheel for enhanced visual effects
  • Iris for total beam control
  • RDM control over DMX for fixture reporting
  • 7° to 45° zoom angle for variable beam sizes
  • 3 menu presets and preset cross load for decreased shop setup time
  • True 1 compatible power input
  • Battery backup display with auto-rotate depending on fixture orientation
  • Intergraded and controllable sunshield for protecting optical system when fixture is not in use

Technical Specifications:

Optical:

  • Light Source: 1 LEDs (CW) 480 W, 6604 K, 50,000 hours life expectancy
  • Color Temperature (at full): 6604 K
  • CRI: 69TLCI: 46.8
  • Beam Angle: 7° to 42°
  • Field Angle: 8° to 48°
  • Zoom Angle: 8° to 48°
  • Lumens – Source: 32,000
  • Lumens – Output: 14,500
  • Illuminance (8°): 28,829 lux @ 5 m
  • Illuminance (48°): 1,528 lux @ 5 m
  • Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 15000 Hz

Dynamic Effects:

  • Pan and Tilt: 540°/270°
  • Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
  • Colors: 7 + white, split colors, continuous scroll at variable speeds
  • Colors: CMY flags, CTO flag
  • Gobos (1): 7 + open (7 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
  • Gobos (2): 8 + open (8 metal), rotating, continuous scroll at variable speeds
  • Gobo Size (1): Gobo Wheel 1 (rotating): 30 mm (outside), 25 mm (image), 1.1 mm (max. thickness)
  • Gobo Size (2): Gobo Wheel 2 (rotating): 160 mm (outside), 23 mm (image), 0.8 mm (max. thickness)
  • Effect Wheel: 1 effect
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Focus: Motorized
  • Frost 1: Light Frost - Motorized
  • Frost 2: Medium Frost - Motorized
  • Iris: Motorized
  • Prism: 3 Facets, motorized, rotating
  • Strobe Rate: 0 to 20 Hz
  • Move-in-Black: Yes
  • Dim Curves: 4

Control:

  • Control Protocol: Art-Net, DMX, W-DMX, RDM, sACN
  • DMX Channels: 26 or 33
  • Art-Net Channels: 26 or 33
  • Modes/Personalities: 2 personalities (26, 33)

Robe Esprite FS Spot


The ESPRITE FS is equipped with a digital camera, mounted on the head, allowing it to be connected to the Robe RoboSpot Base Station for remote Follow Spot control.

Main Features include:

  • Self-referencing, data capturing TE™ 650W White LED engine
  • 27.000 lm output producing a piercing 85.000 lux at 5 m
  • Precision optics to produce crystal clear white light
  • Flat field CMY mixing
  • Variable CTO
  • Remotely selectable CRI 70/80/90
  • Two fast colour wheels
  • One indexable and rotatable gobo wheel
  • A fixed gobo wheel CTO filters
  • 6-facet rotating prism
  • 1° soft edge and 5° wash type frosts
  • An animation wheel and spectacular multi-colour effects

Technical Specifications (ARCS WIDE):

Source:

  • Light source type: TE 650W White LED Engine
  • LED life expectancy: min. 20.000 hours
  • CRI: 70/80/90, remotely selectable
  • Colour temperature: 6.700K
  • Typical lumen maintenance: 70% @ 20.000 hours
  • Light source warranty: 4 years or 20.000 hours

Optical System:

  • High - efficiency zoom optical system, ratio 9:1
  • Zoom range: 5.5° - 50°
  • Output lens diameter: 150 mm
  • High efficient component optics
  • Fixture total lumen output: up to 27.000 lm
  • Brightness: 85.000 lx @5m

Dynamic Effects:

  • Cyan: 0 - 100%
  • Magenta: 0 - 100%
  • Yellow: 0 - 100%
  • Variable CTO: 3.000K - 6.700K
  • Colour Wheel 1: 5 fixed dichroic colours + white
  • Colour Wheel 2: 5 fixed dichroic colours + white
  • Framing shutters : Patented framing shutters module with 4 individually positionable blades plus rotation of the complete frame system +-60°
  • Rotating gobo wheel: 7 rotating, indexable and replaceable breakup and aerial gobos + open, patented slot & lock system
  • Static gobo wheel: 9 static and replaceable gobos + open
  • Animation wheel: Aluminium animation wheel, used alone or in combination with gobos, rotating in both directions at variable speed
  • Prism: 6 - facet prism rotating in both directions at variable speed
  • Iris: Motorized, stepless, pulse effects up to 3 Hz
  • Frost: light 1° for instant softening of the projected gobo or framing shutters and medium 5° for even wash
  • Hot-Spot: from flat field to 6:1 hot-spot
  • Motorized zoom and focus
  • Electronic strobe effect with variable speed up to 20 Hz
  • High resolution electronic dimming: 0 - 100%
  • L3 - (Low Light Linearity) Imperceptible 18 bit dimming for ultra-smooth fade to black
  • Cpulse special flicker free management for HD and UHD cameras, ready for 8K and 16K

Control And Programming:

  • Setting & Addressing: ROBE Navigation System 2 (RNS2)
  • Protocols: USITT DMX-512, RDM, ArtNet, MA Net, MA Net2, sACN
  • Wireless CRMX technology from Lumen Radio: On request
  • DMX Protocol modes: 2
  • Control channels: 49, 42
  • Pan/Tilt resolution: 16 bit

Movement:

  • Pan movement: 540°
  • Tilt movement: 265°

Rotating Gobos:

  • 7x rotating glass gobos
  • Outside diameter: 26.8 mm
  • Image diameter: 23.5 mm
  • Thickness: 1.1 mm
  • Max. thickness: 3.5 mm
  • High temperature borofloat or better glass

Camera:

  • Type: SNZ-6320
  • Resolution: 1920 x 1080, 16:9 Full HD (1080p) resolution support
  • Zoom: 32x optical zoom; 16x digital zoom
  • Streaming: H.264, MPEG dual codec, Multiple streaming
  • Vision: Day & Night (ICR), WDR (120dB)
  • Minimum illumination: 0.3 Lux

Electrical Specification and Connections:

  • Power supply: Electronic auto-ranging
  • Input voltage range: 100-240 V, 50/60 Hz

Archives

×
