Moving Heads


Spotlight on Beam, Wash & Spot Moving Lights, launched in 2018-19.


Claypaky Sharpy Plus


Sharpy Plus is the first true 100% HYBRID unit, able to be a perfect beam light and a perfect spotlight. It is suitable for every occasion, with an extraordinary luminous efficiency, which ensures substantial savings through lower power consumption.

Main Features include:

  • Source: 330W X8 HRI Sirius Osram arc lamp
  • 100% Hybrid projector
  • Two modes: BEAM and SPOT
  • 3°- 36° linear zoom
  • 3° narrow beam angle
  • Six beam reducers (down to 0.5°)
  • 300,000 Lux at 10 m (much more than Sharpy)
  • CMY color mixing
  • 15 colors on 3 wheels
  • 2 CTO filters
  • Rotating Gobo Wheel: 8 interchangeable glass gobos
  • Static Gobo Wheel: 18 fixed gobos
  • Rotating 4-facet prism on dedicated channel
  • Rotating 8-facet prism on dedicated channel
  • Dynamic Animation disc
  • Linear soft edge frost filter
  • Dimmer and stop/strobe
  • Dense, Sharp, Parallel Light Beams
  • Extremely quick movements
  • Excellent visual effect projections
  • Wide and sharp aerial effects

Technical Specification:

  • Power Supplies
    • AC power input Neutrik PowerCON True1 (IP65) 100-240V, 50/60 Hz
  • Input Power
    • 540 VA @230Vac - 50Hz
  • Light Source
    • 330W X8 HRI Sirius Osram arc lamp
  • Optics
    • Zoom 3°- 36°, Linear and motorized
  • Color System
    • CMY color mixing
    • 15 colors on 3 wheels
    • 2 CTO filters
  • Effects Section
    • Rotating Gobo Wheel: 8 interchangeable glass gobos
    • Static Gobo Wheel: 18 fixed gobos
    • Rotating 4-facet prism on dedicated  channel
    • Rotating 8-facet prism on dedicated channel
    • Linear soft edge frost filter
    • Dimmer and stop/strobe
    • Dense, Sharp, Parallel Light Beams
    • Extremely quick movements
    • Excellent visual effect projections
    • Wide and sharp aerial effects
  • Weight: 23 Kg (50.7 lbs)

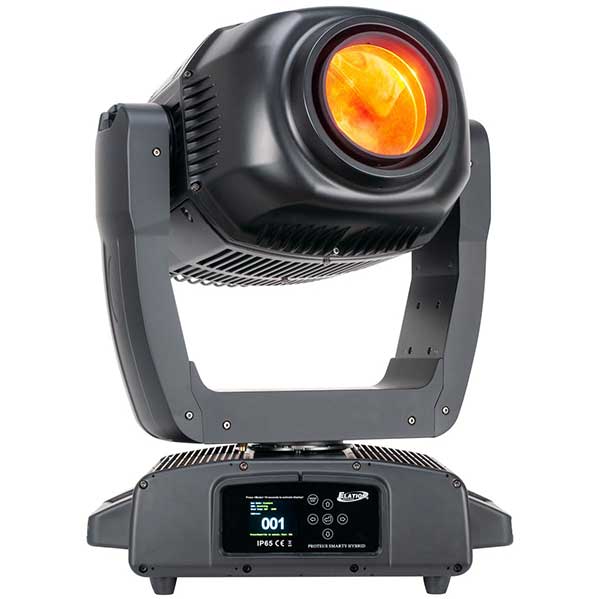

Elation Professionals Proteus Smarty Hybrid


Proteus Smarty Hybrid is full featured IP65 certified Spot, Beam and Wash Hybrid fixture for indoor and outdoor use. It features the all new Philips MSD Platinum 200 Flex lamp with “FLEX” technology, which uses a smartly designed discharge lamp/ballast package to produce high output and compact performance at an efficient, long life solution of up to 6,000 hours.

Main Features include:

  • IP65 Certified 3-in-1 Beam, Spot, Wash Hybrid Fixture
  • Flex Lamp Technology from 190 to 280W and Lamp Hibernation with up to 6000 Hour Lamp Life
  • Full CMY Color Mixing System
  • Rotating and Static Gobos, Dual Prism, Frost
  • Zoom from 1° Beam to 33° Wash and Auto Focus option

Technical Specifications:

  • SOURCE
    • Philips MSD Platinum 200 Flex 280W Lamp
    • Up To 6,000 Hour Lamp Life
  • PHOTOMETRIC DATA
    • 11,000 Total Output Lumen (preliminary)
    • 128,426 LUX @15m (Beam Mode) (preliminary)
  • EFFECTS
    • Beam, Spot and Wash Modes
    • Motorized Zoom 1°-18° Beam, 3°-27° Spot, 5°-33° Wash
    • Full Frost Filter for Wash Effects
    • 16-Facet and 5-Facet Linear Prisms
    • CMY Color, Gobo, Prism Macros
    • Motorized Focus with Auto-Focus Feature
    • High Speed Shutter and Strobe
  • COLOR
    • Full CMY Color Mixing System
    • 13 Colors including Quad Color, CTO, CTB and UV
  • GOBOS
    • 2 Gobo Wheels
    • 8 Rotating / Indexing Interchangeable Glass Gobos
    • 12 Static-Stamped Metal Gobos
  • SIZE / WEIGHT
    • Length: 445mm (17.5 in)
    • Width: 454mm (17.88 in)
    • Height: 680mm (26.8 in)
    • Weight: 35kg (71.1 lbs.)
  • ELECTRICAL
    • AC 100-240V 50/60Hz
    • 480W Max Power Consumption (estimated) 1

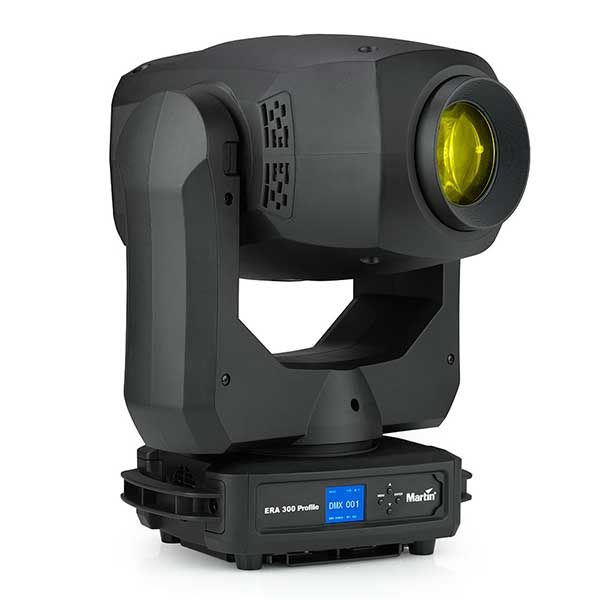

Martin ERA 300 Profile


Martin ERA 300 Profile is a very compact profile fixture with an extremely efficient 260W white LED engine that produces a sharp gobo projection with a flat field and more output than typically associated with similar-sized and featured fixtures.

Main Features include:

  • 260 watt / 6,500K LED light source
  • 9,500 lumen output
  • Full feature set including CMY color mixing and 1:2 zoom
  • Crisp optics with flat field
  • Very compact and low weight design

Technical Specification:

  • Physical
    • Weight: 17kg (38lbs)
  • Gobos
    • Gobo diameter: 26.8 mm +/- 0.2 mm  (1.1 in. +/- 0.008 in.)
    • Maximum image diameter: 19.0 mm (0.75 in.)
    • Gobo thickness, maximum: 1.1mm  borosilicate glass
  • Dynamic Effects
    • Electronic dimming: 0 - 100%, four  dimming curve options
    • Color mixing: CMY, independently vari able 0-100%
    • Color wheel: 9 color filters plus open
    • Beam effects: Rotating three-facet prism
    • Rotating gobo wheel: 7 gobos plus  open, wheel rotation, gobo rotation, indexing and shake
    • Static gobo wheel: 9 gobos plus open,  wheel indexing, rotation and shake
    • Iris: 0-100%
    • Pan: 540°, coarse & fine control and speed
    • Tilt: 260°, coarse & fine control and speed

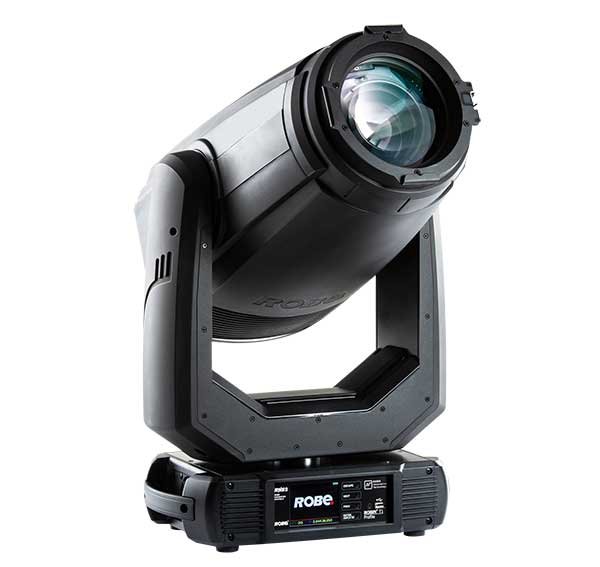

Robe T1 Profile


T1 Profile is one and only fixture users need for theatre, television, touring, and now with the option to be connected to the Robe innovative RoboSpot system. This product is specifically designed to fulfill the challenging requirements of these diverse applications within one comprehensive fixture.

Main Features include:

  • Factory calibrated whites and colours via the new Robe Colour Calibration system, automatic or on-call self-re-calibration of the LED engine without the use of any external tool (Patent pending)
  • Framing shutters : Patented framing shutters module with 4 individually position able blades plus rotation of the complete frame system + - 60°
  • Rotating gobo wheel: 7 rotating, index able and replaceable breakup and aerial gobos + open, all gobos specially selected for theatrical and TV productions.
  • Frost: very light 0,5° for instant softening of the projected gobo or framing shutters and medium 10° for even wash, both selected specifically for theatre and TV use
  • Electronic strobe effect with variable speed up to 20 Hz
  • Extremely quiet operation suitable for all types of production in Theatre and TV

Technical Specifications:

  • Source
    • Light source type: MSL  550 W Multi-Spectral LED engine
    • LED life expectancy: min. 30.000 hours
    • CRI 90+
    • Control: Automatic and remote on/off
    • Light source warranty: 3 years or 20.000 hours
  • Optical System
    • Robe’s proprietary optical design
    • High - efficiency zoom optical system, ratio 7:1
    • Zoom range: 7° - 49°, covers favoured field angles of most Theatre and TV lights
    • Fixture total lumen output: up to 10.075 lm
    • Height: 726 mm (28.6”) - head in horizontal position
    • Width: 400 mm (15.7”)
    • Depth: 258 mm (10.2”) - head in horizontal position
    • Weight: 24.3 kg (54 lbs)

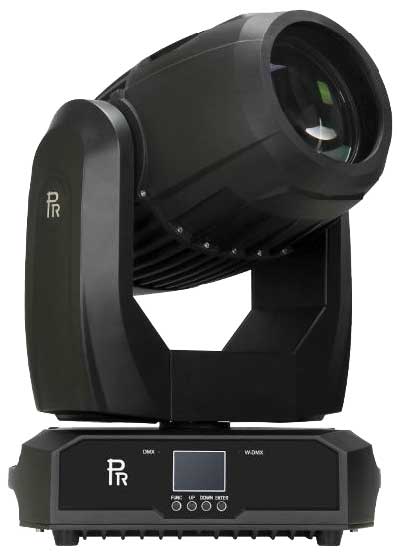

PR Lighting AQUA 350 BWS


AQUA 350 BWS is waterproof IP65 moving head, which integrates three features (Beam, Wash, Spot) in a single unit, it adopted PR patented technology, combines advanced 350W lamp with superb optical system, it is your best choice for outdoor activities.

Main features:

  • Fixed Gobo Wheel: 11 gobos and animation effect plus open
  • Bi-directionally rotatable, and shakable effect at variable speeds
  • 1 Rotating Gobo Wheel: 12 interchangeable gobos plus open
  • Bi-directionally rotatable, and shakable at variable speeds
  • International standard DMX512 signal , 3 pins and 5 pinsinterfaces
  • 21channelsin short mode, 29channels in standard mode
  • Adjustable mode
  • Adjustable Pan & Tilt speed
  • Fixture and lamp hours’display
  • Modular construction for easy maintenance

Technical Specifications:

  • Input Voltages: 1 00-240V AC, 50/60Hz
  • Power Consumption: 550W@220V
  • Light Source: USHIO NSL -350A(350W), (6800K, 1 ,500 hrs)
  • Strobe: Single blade, 0.3-20 F.P.S
  • Dimmer: 0-100% linearly dimming
  • Colors: CYM linear color mixing system with macros
  • 1 Color wheel: 12 dichroic color filters+CTO plus open
  • Gobos:
    • 1 Fixed gobo wheel: 11 gobos and animation effect plus open Bi-directionally rotatable, and shakable effect at variable speeds
    • 1 Rotating gobo wheel: 12 interchangeable gobos plus open Bi-directionally rotatable, and shakable at variable speeds
  • Prism
    • Three prisms(standard: 2x6-facet circular prisms and one linear prism)+frost+open, bi-directional rotation with variable speeds
  • Light Angle
    • Beam mode: oo -2.5°
    • Spot mode: 2.5°-42°
    • Wash mode: 5°-50°
  • Weight: Net weight: 27Kg
