INSTALLATION SPEAKERS


Spotlight on recent install speakers; Launch Period 2018-2019

Adamson Systems IS10p


This IS10p is a 2-way, full range point source cabinet a new point source additions to Adamson’s heralded IS-Series of install-focused loudspeaker products. It is suited to a wide variety of applications. Its full range capability (60 Hz) at reasonable levels qualifies for applications where sub is not required. The choice in dispersion pattern enables the IS10p to supplement larger systems as a fill cabinet when in use in theaters, arenas and stadiums. Other target applications include dance clubs, large meeting rooms, and contemporary churches.

Main Features include:

  • It contains 2x ND10-LM Low-Mid drivers (2x 16 Ω) and an NH3-8 1.4” exit compression driver (8 Ω)
  • The prolate spheroidal waveguides to produce a nominal dispersion pattern of 70° x 40° (H x V), rotatable in 90° increments
  • The cabinet construction uses marine grade birch plywood as well as aircraft grade aluminum and steel, and is equipped with two Speakon NL4 connectors (IS10p), or barrier strips (IS10pb)
  • A plate and screw rigging system placed on four faces of the enclosure, with a multitude of accessories allowing the enclosure to be deployed seamlessly in a variety of applications.

Technical Specifications:

  • Frequency Range (+/-3 dB): 60 Hz - 18 kHz
  • Nominal Directivity (-6 dB) H x V: 70° x 40° Rotateable
  • Maximum Peak SPL: 139 dB
  • Components LF: 2 X ND10-LM
  • Components HF: Adamson NH3-8 3” Diaphragm / 1.4” Exit Compression Driver
  • Nominal Impedance LF: 8 Ω (2 x 16 Ω)
  • Nominal Impedance HF: 8 Ω
  • Power Handling (AES / Peak) LF: 700 / 2800 W
  • Power Handling (AES / Peak) HF: 110 / 440 W
  • Connection: 2x Speakon NL4 or Barrier Strips
  • Height Front (mm / in): 737 / 29
  • Width (mm / in): 326 / 12.85
  • Depth (mm / in): 442 / 17.4
  • Weight (kg / lbs): 21 / 46.3

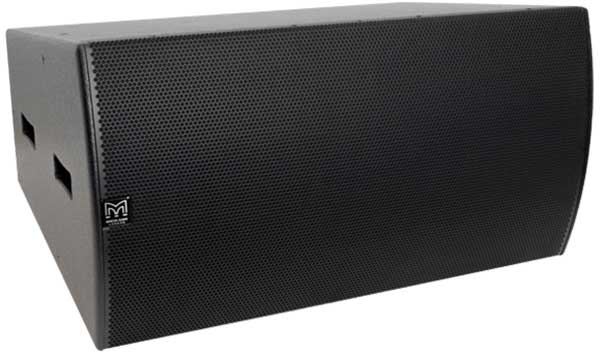

Martin Audio TH Series


TH Series by Martin Audio comprised two very high performance, all-horn, three-way systems in both a horizontally and vertically formatted package. They are designed to complement the styling of its best-selling CDD and BlacklineX Series and are ideal for nightclub and large scale installs.

Main Features include: (Three-Way BI-AMP 15” Horizontally Orientated High Power System)

  • All-horn three-way system
  • ‘Phase-ball’ loaded mid-driver
  • Hybrid® LF section
  • Fitted with handles and castors
  • Horizontal format

Tech Specifications:

  • Type: Three-way bi-amp trapezoid Hybrid® fully horn loaded
  • Frequency Response (5): 50Hz-18kHz ± 3dB
  • Driver: 15” (380mm)/4” (100mm) coil bass driver; 10” (250mm)/2.5” (63.5mm) coil mid driver; 1” (25mm) exit HF compression driver
  • Sensitivity (8) LF: 104dB, MF + HF: 104dB
  • Maximum SPL : 133dB continuous, 139dB peak
  • Nominal Impedance: LF: 8Ω, MF + HF: 8Ω
  • Dispersion (-6DB): 70˚ horizontal, 40˚ vertical
  • Crossover: 200Hz active, 2kHz passive
  • Enclosure: 250 litre, multi-laminate birch ply
  • Connectors: 2 x Neutrik NL4
  • Dimensions: (W) 1067mm x (H) 558mm x (D) 780mm (908mm); (W) 42ins x (H) 22ins x (D) 30.7ins (35.7ins)
  • Weight: 77.5kg (170.5lbs)

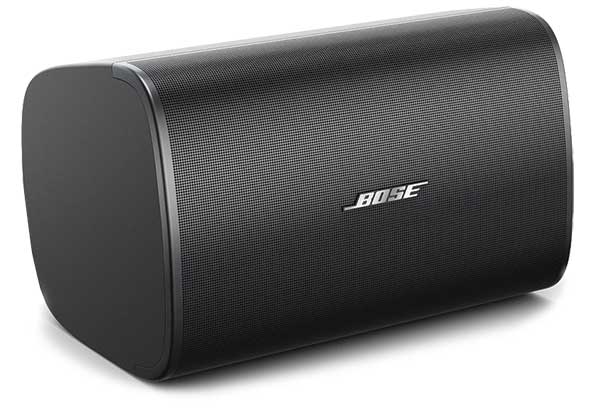

Bose DesignMax DM8S


Delivering SPL suitable for foreground music, the 125-watt DesignMax DM8S loudspeaker features a two-way, 8-inch coaxially mounted woofer and a center-firing 1-inch compression driver, producing a 50 Hz - 20 kHz frequency range. The DM8S is surface-mounted and locks onto a hidden QuickHold U-bracket for fast, secure installation..

Main Features include:

  • Deliver instantly impressive sound with custom Bose drivers — no DSP or EQ required. For even better sound, use select Bose DSPs and amplifiers to enable Bose loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
  • Blend into any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
  • Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
  • Install easily — all models include Euroblock connectors; ceiling-mounted models include plenum-rated backcans, tile-bridges, and front-access audio wiring that makes installation and troubleshooting easier
  • Deliver high SPL for clear foreground music
  • Applications: Performing arts venues, Places of worship, Conference centers, Retail stores, Restaurants and bars and hospitality venues.

Technical Specifications:

  • Frequency Response (+/-3 dB): 70-20,000 Hz
  • Nominal coverage (H x V): 115° x 115°
  • Power Handling, peak: 500 W
  • Maximum SPL @ 1m: 117 dB
  • Frequency Range (-10 dB): 60-20,000 Hz
  • Power Handling, long-term continuous : 125 W
  • Sensitivity (SPL/1W @ 1 m): 96 dB
  • Nominal Impedance: 8 Ω (transformer bypass)

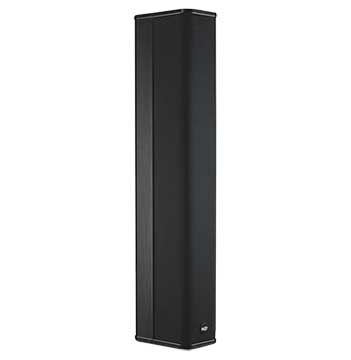

Next-proaudio Matrix


MATRIX passive column arrays are composed of closely-spaced state of the art, 3” neodymium transducers housed in a stylish and yet sturdy aluminum/wood chassis for excellent Architectural Integration. These speaker arrays has developed in order to offer the highest intelligibility at high SPL and wider frequency response while providing constant beam-width over a user selectable vertical coverage. This accurate beam control extends up to 10 kHz, well beyond the benchmark of 4kHz of traditional single-driver loudspeakers.

Main features include:

  • These column arrays are able to focus the acoustical energy where it is needed, the listening area, leading to significant improvements to speech intelligibility and musical clarity even in critical acoustic environments.
  • For even greater versatility, the vertical dispersion pattern can be switched for Wide or Narrow coverage.
  • The heart of the NEXT MATRIX column arrays is the internal processing board. This proprietary special circuitry takes care of the array optimization and allows the user to easily adjust the system behavior to meet the application requirements.
  • For an architectural integrated installation, a 16mm cavity in the back of the speaker provides ample space for hidden speaker wiring, even when the speaker is mounted flat against a wall.
  • Removable Input screw connector offers reliable, easier, and more efficient wiring.
  • For high-impedance (100V) operation, an optional multi tap transformer is available.

Technical Specifications:

  • Frequency Response (-10dB): 135Hz - 20kHz
  • Horizontal Coverage: 90º (+/-20º 1.5-5kHz)
  • Vertical Coverage: 25º(+/-10º 1.2-16kHz) / (+10º/-5º 1.5-16kHz)
  • Sensitivity: (1W@1m) 100dB/97dB
  • Dimensions (WxHxD): 108 x 677 x 152mm (4.25 x 26.65 x 5.98in)
  • Net Weight: 6.2kg (13.7lb)

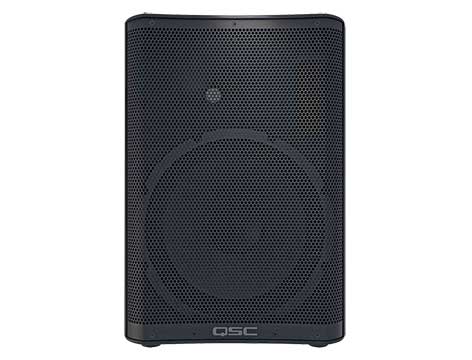

QSC CP Series


CP Series of compact, powered loudspeakers represents the best-in-class powered loudspeaker solution for customers who desire QSC performance, quality and reliability at a value price point. This series comprised two 2-way models, the CP8 and CP12. Both models feature a highly efficient 1000-watt Class-D power module, one-touch preset DSP contours for the most common sound reinforcement applications, and line, mic/line and 3.5 mm stereo inputs. Each can also be pole-mounted, utilized as a floor monitor, or deployed in a fixed or temporary installation.

Main features include:

  • Advanced DSP with Intrinsic Correction for superior sound quality and speaker protection
  • Directivity Matched Transition (DMT) for consistent frequency response across the entire coverage area
  • Professional appearance looks great in any application
  • Use for main PA, stage monitor, or instrument amplifier
  • 35 mm pole socket
  • Optional yoke, tote, and outdoor cover accessories
  • It provides one-touch access to preset contours for the most commonly-used applications including Default (Full-Range), Default with External Subwoofer, and Dance with External Subwoofer, Floor Monitor, and Speech.

Technical Specifications:

  • Configuration: Two-way active loudspeaker
  • LF Transducer: 12 in (305 mm),
  • HF Transducer: 1.4 in (35.6 mm) compression driver
  • Frequency Response (-6 dB): 49 - 20 kHz
  • Frequency Range (-10 dB): 47 - 20 kHz
  • Nominal Coverage Angle: 75° Axisymetric
  • Maximum Rated SPL1: 126 dB
  • Amplifier: Class D
  • Peak: 800 W (LF), 200 W (HF)
  • AC Power Input: Universal power supply 100 – 240 VAC, 50 – 60 Hz
  • AC Power Consumption (1/8th Power): 100 VAC, 0.75A - 240VAC 0.31A
  • Grille: 18 Gauge powder-coated steel
  • Dimensions (HxWxD): 20.3 x 13.8 x 12.7 in; 516 x 350 x 323 mm
  • Net Weight: 30.3 lbs (13.7 kg)
  • Shipping Weight: 36.3 lbs (16.5 kg)
