Moving Heads

Wash…Beam…Spot….Action


Former year had a lot to offer in the Moving Head segment. PT lines up some interesting debuts

Martin Harman MAC Encore Wash CLD


MAC Encore Wash CLD is an LED-based alternative to the MAC Viper Wash DX designed to produce rich color and premium white light in a wide variety of applications where light quality is critical.

Main Features include:

• Flicker-free operation—LED driver frequency suitable for all camera applications.
• Whisper-silent—Combines convection and forced air cooling with user-selectable output vs. sound level control.
• Fully electronic dimmer/shutter control with various dimming curves and tungsten red-shift emulation.
• Variable CTO—daylight to tungsten CCT control and expansion of the CMY palette that stays true to the black body curve.
• Color wheel—6 interchangeable dichroic filters + open.
• Fresnel lens: 1:4 zoom—precise, silent and fast zoom.
• PC lens (optional): 1:5 zoom—precise, silent and fast zoom.
• Internal barndoor system with two shutter blades and iris.
• Animotion FX System—Internal dimming effect macros for stunning 3D mid-air and projection effects.

Technical Specification:

• Physical:

Length: 452 mm (17.8 in.);
Width (across yoke): 480 mm (18.9 in.);
Height (maximum): 755 mm (29.8 in.);
Height (head straight up): 745 mm (29.4 in.);
Weight: 28.5 kg (62.9 lb.)

• Dynamic Effects:

Color Mixing: CMY, independently variable 0 - 100%;
Color Temperature Control: Variable 6000 - 2700 K;
Color Wheel: 6 x interchangeable dichroic filters + open, indexing, continuous rotation, random color;
Focus: Range varies with zoom angle, from approx. 2 m (6.6 ft.) / 6 m (19.7 ft.) to infinity Zoom: Motorized
Pan: 540°
Tilt: 268°

• Control and Programming

DMX channels: 24
16-bit control: Dimming, pan and tilt
Movement control options: Tracking and vector
DMX compliance: USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20
Transceiver: Opto-isolated RS-485

• Optics

Light source: 6000 K white LEDs
Total LED engine power: 468 W
Minimum LED lifetime: 50 000 hours (to >80% luminous output)

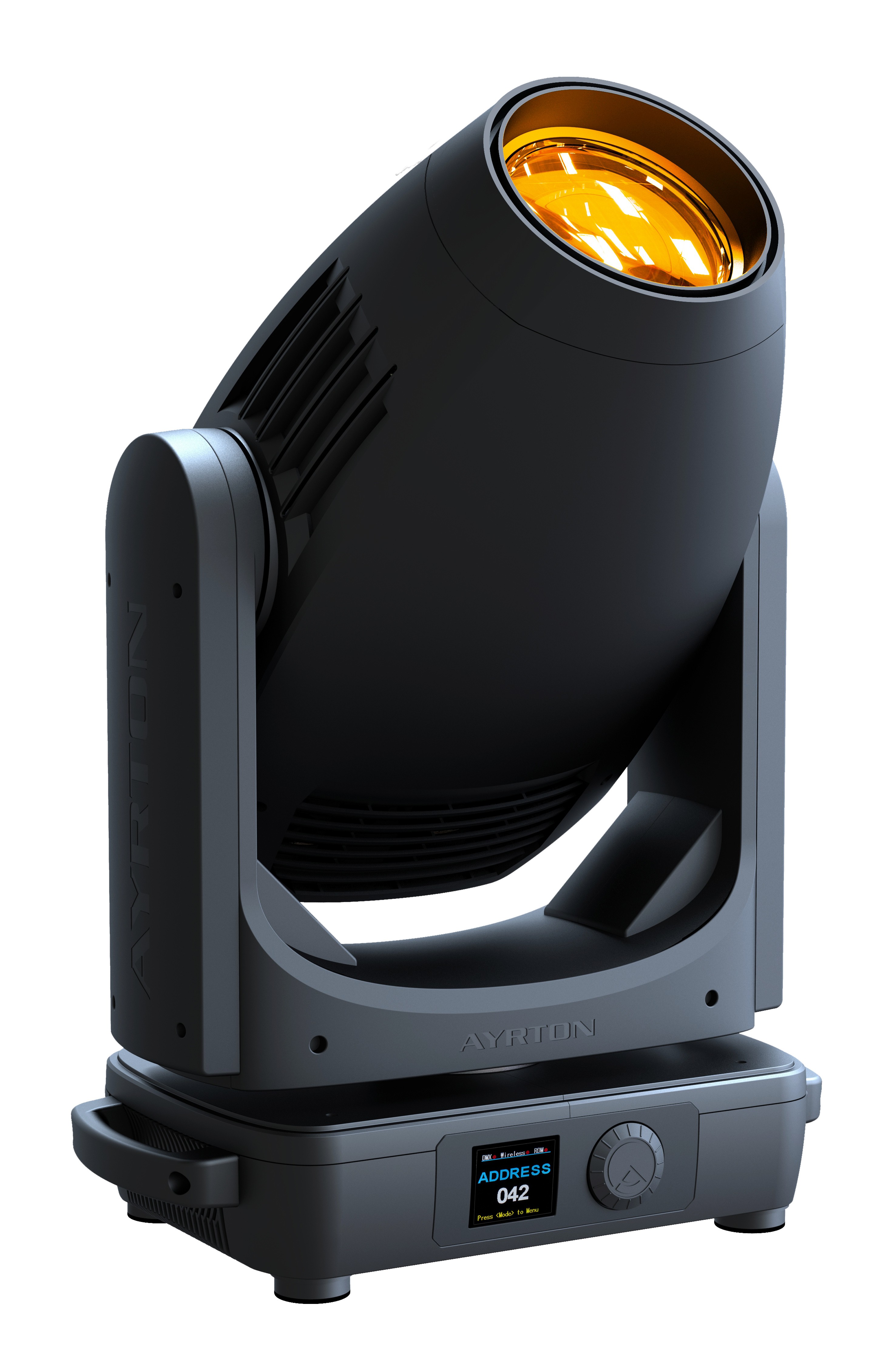

Ayrton GHIBLI

GHIBLI is Ayrton’s first LED spot luminaire that is factory-equipped with a framing system designed to offer lighting designers unlimited creative possibilities without any compromise.

Main Features include:

• Fitted with an LED module using a high-output, low-etendue monochromatic white light source calibrated at 7,500K

• The proprietary optical system, equipped with a 137 mm frontal lens, has 13 high-quality lenses, delivering an 8:1 zoom ratio and a zoom range of 7° to 56°

• CMY colour mixing system combined with a variable CTO and a six-position complementary colour wheel to produce an infinite palette of pastels and saturated colours

• The effects section includes two wheels with interchangeable HD glass gobos.Technical Specifications:

• OPTICS:

 13 elements 8:1 zoom high resolution optic system
 Beam aperture: 7° to 56°
 137 mm front lens for ultimate performance

• LIGHT SOURCE:

 30K low-etendue White Light Engine
 Total luminaire output: up to 23,000 lumens
 CRI: up to 90 with High CRI filter
 Rated source life: up to 25,000 hours

• POWER SUPPLY:

 100 to 240 Volts – 50/60Hz
 Power 900 W max

• OPERATING PARAMETERS:

 (Ta max): 45°C (113°F)
 (Ta min): -10°C (14°F)
 Minimum usage distance: 2.0 m

• SIZE:

 Product: 494 x 729 x 281 mm (l x h x d)
 Flight-case Foam: 545 x 765 x 360 mm (l x h x d)

• WEIGHT:

 Product: 35.6 KG

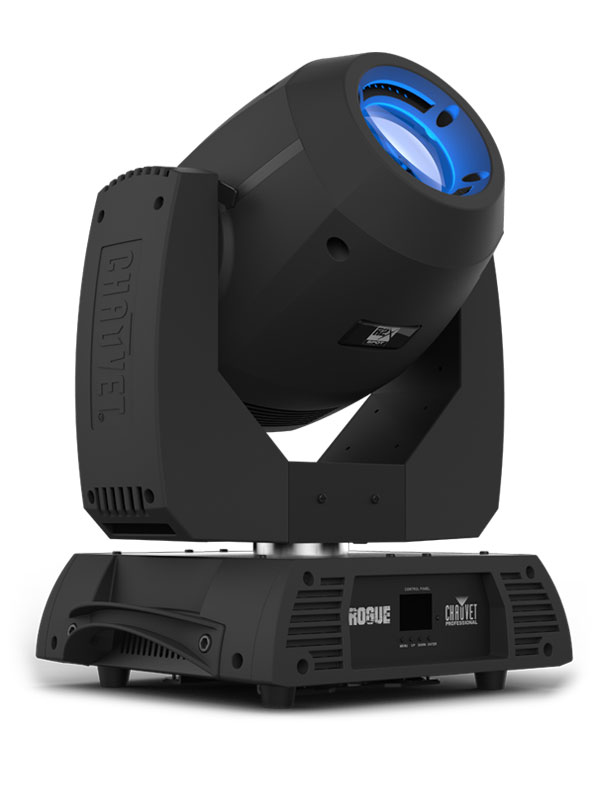

Chauvet Rogue R2X Spot

Rogue R2X Spot offers incredible value with a stunning range of colors and effects, all supported by professional quality engineering.

Main features include:

• Intense 300 W LED light engine for punchy, bold beams
• Two color wheels with 7 colors, split color ability, and continuous variable speed scrolling
• Two gobo wheels
• 16-bit LED dimming for ultimate fade control
• RDM enabled for remote addressing and trouble shooting
• Selectable LED maximum output to match legacy Rogue R2 Spots
• Selectable PWM settings to maintain flicker-free operation on camera
• Simple and complex DMX channel profiles for programming versatility

Technical Specification:

• OPTICAL

 Light Source: 1 LEDs (CW) 300 W, (8.7 amps), 7,836 K, 50,000 hours life expectancy
 Beam Angle: 16.5°
 Field Angle: 16.5°
 Lumens – Source: 23,000
 Lumens – Output: 11,000
 Illuminance (total): 9,187 lux @ 5 m
 Selectable PWM: 600 Hz, 1,200 Hz, 6,000 Hz, 15,000 Hz

• CONSTRUCTION / PHYSICAL

 Dimensions: 16.1 x 13.5 x 19.25 in  Weight (single unit): 47.8 lb (21.7 kg)

• CONNECTIONS

 Power Connection: Edison (local) plug to Neutrik powerCON
 Power Input: Neutrik powerCON
 Power Output: Neutrik powerCON
 Data Connectors: 3- and 5-pin XLR
 Cable Length (power): 5 ft (1.5 m)

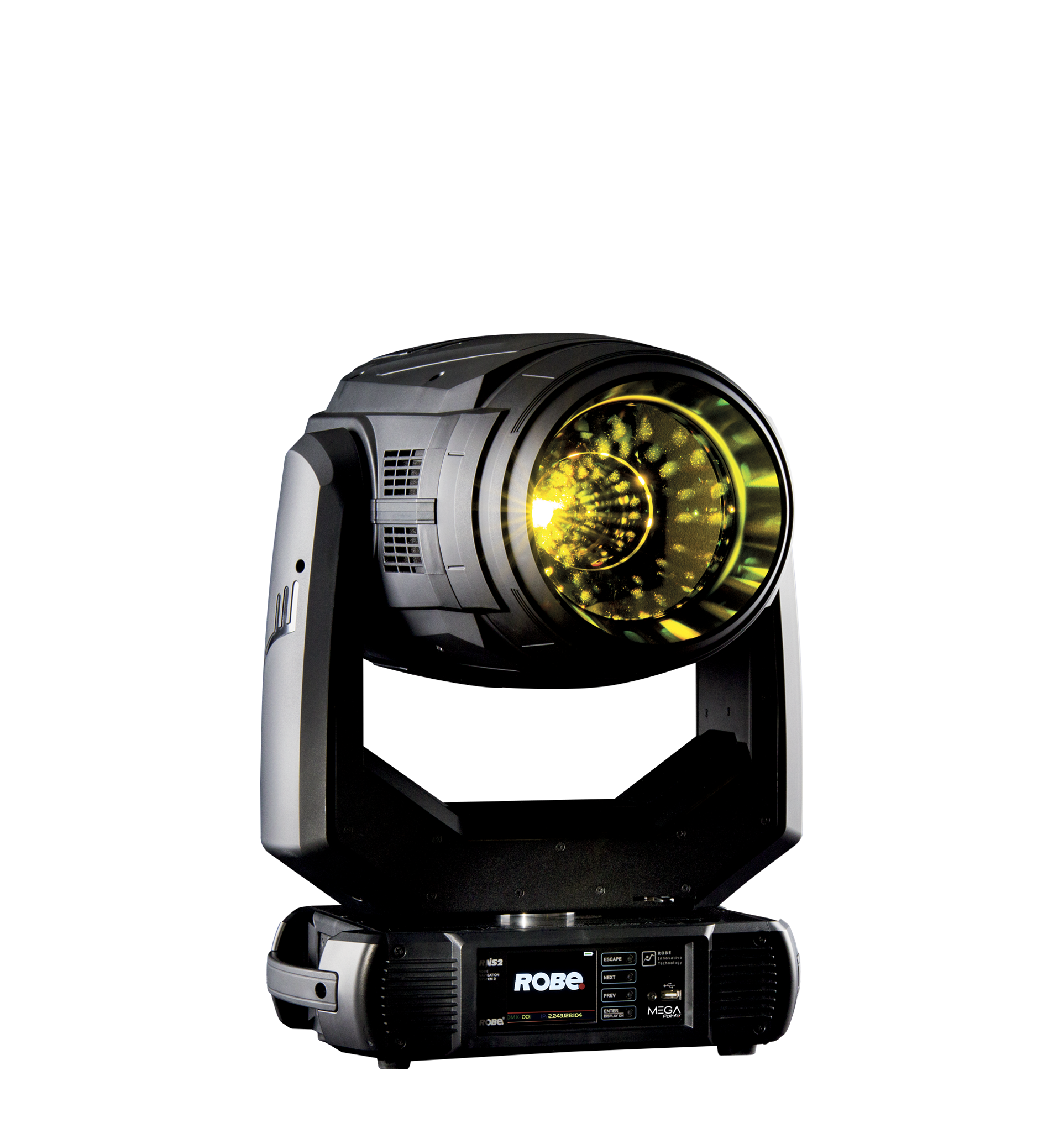

Robe MegaPointe

MegaPointe is an all-in-one fixture, whose bright sharp parallel beams, excellent gobo projection, precise movement, smooth CMY colour mixing and dimming plus a multitude of beam splitting, wash and shaping effects, allows the users to unleash their creativity.

Main Features include:

• Light Source: Osram Sirius HRI 470 W RO
• Light Output: MEGA bright 2.200.000 lx @ 5 m
• Zoom Range: 1.8°– 21° beam mode, 3°– 42° spot mode
• Effects: CMY mixing, rotating and static gobo wheel, animation wheel, 12 beam and flower effects

Technical Specifications:

• SOURCE

 Lamp: Discharge short arc lamp with integrated reflector
 Approved model: Osram Sirius HRI 470 W RO
 Lifetime: 1.500 hours @ 470W Standard mode, 2.000 hours @ 380W Eco mode
 CRI: 80/90
 CCT Light Output: 6.300 K, CCT Lamp: 7.500 K
 Control: Automatic and remote on/off

• OPTICAL SYSTEM

 Zoom range: 1.8°– 21° beam mode; 3°– 42° spot mode
 Output lens diameter: 150 mm
 Fixture total lumen output: 20.375 lm
 Light output: Beam mode 1.8°: 2.200.000 lx @ 5 m; Beam mode 1.8°: 137.500 lx @ 20 m; Spot mode 3°: 715.300 lx @ 5 m; Spot mode 3°: 44.710 lx @ 20 m

• MECHANICAL SPECIFICATION

 Height: 640 mm (25.2”) - head in vertical position
 Width: 396 mm (15.6”)
 Weight: 22 kg (48.5 lbs)

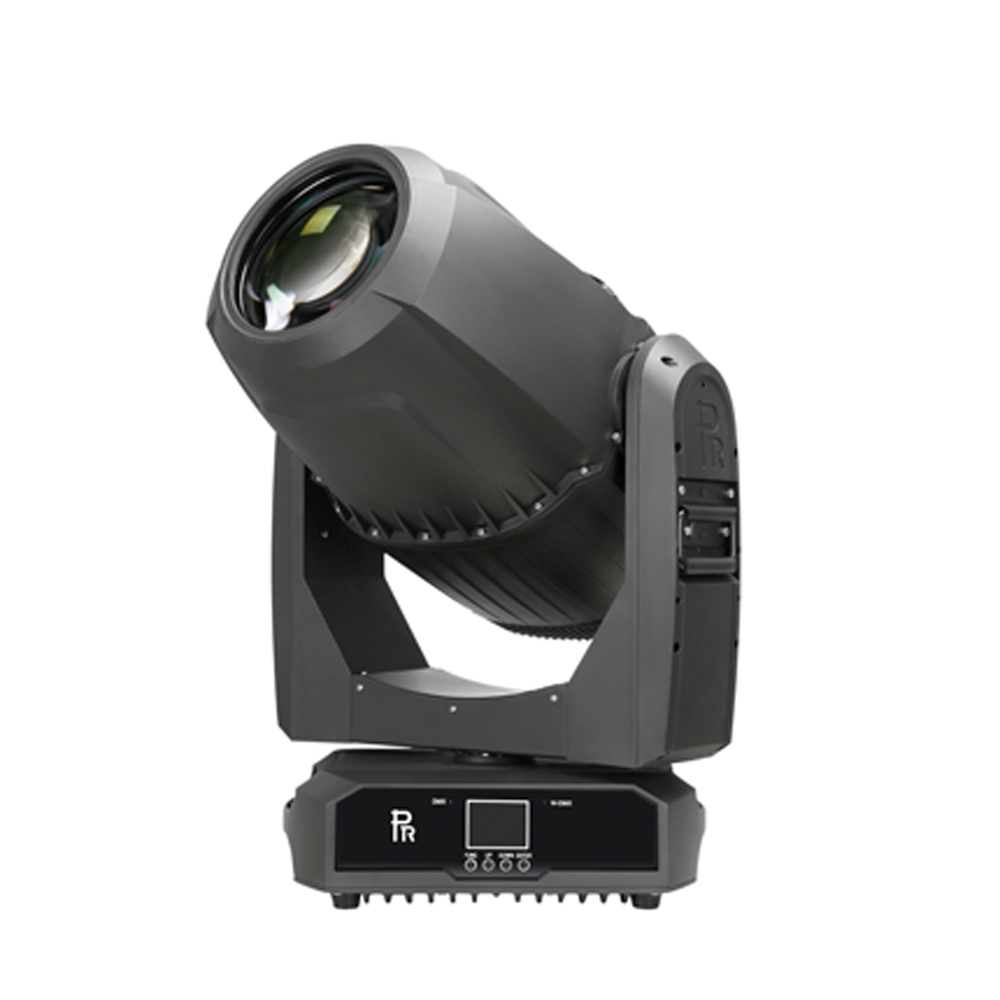

PR LIGHTING AQUA 480 BWS

AQUA 480 BWS is IP65 moving light, designed to provide 3 features in 1. It has adopted PR patented technology, combines advanced 480W lamp with superb optical system, ideal for outdoor entertainment, concert, stadium and other lighting applications.

Main features:

• Light Source: USHIO PR 480(480W), (6900±300K), 1,500 hrs
• Input Voltages: 100V~240V AC, 50/60Hz
• Power Consumption: 650W@220V
• Strobe: double shutter blades, 0.3~25 F.P.S with macros
• Prism: 3 prisms (standard: 2x8-facet circular prisms and 1x4-facet linear prism) +frost plus open, bi-directional rotation with variable speeds (optional: 3-facet, 16- facet circular/linear/gradient prisms)
• Light Angle: beam mode: 0°~2.8°; spot mode: 2.8°~60°; wash mode: 10°~60°
• Head Movement: pan 540º and tilt 270º with auto position correction and adjustable speed.
• Channels: short mode 22 channels, standard mode 30 channels and extended mode 34 channels

Technical Specifications:

• Input Voltages: 100-240V AC, 50/60Hz
• Power Consumption: 650W@220V
• Light Source: USHIO PR 480(480W), (6900±300K, 1 ,500 hrs)
• Strobe: Double shutter blades, 0.3-25 F.P.S
• Head Movement: Pan 540°, tilt 270° with auto position correction
• Spot mode: 2 so -60°
• Wash mode: 10°-60°
• Control: International DMX512, 3 pins and 5 pins interface; Short mode 22 channels, standard mode 30 channels and extended mode 34 channels Self-test mode
• Weight: Net weight: 42Kg
