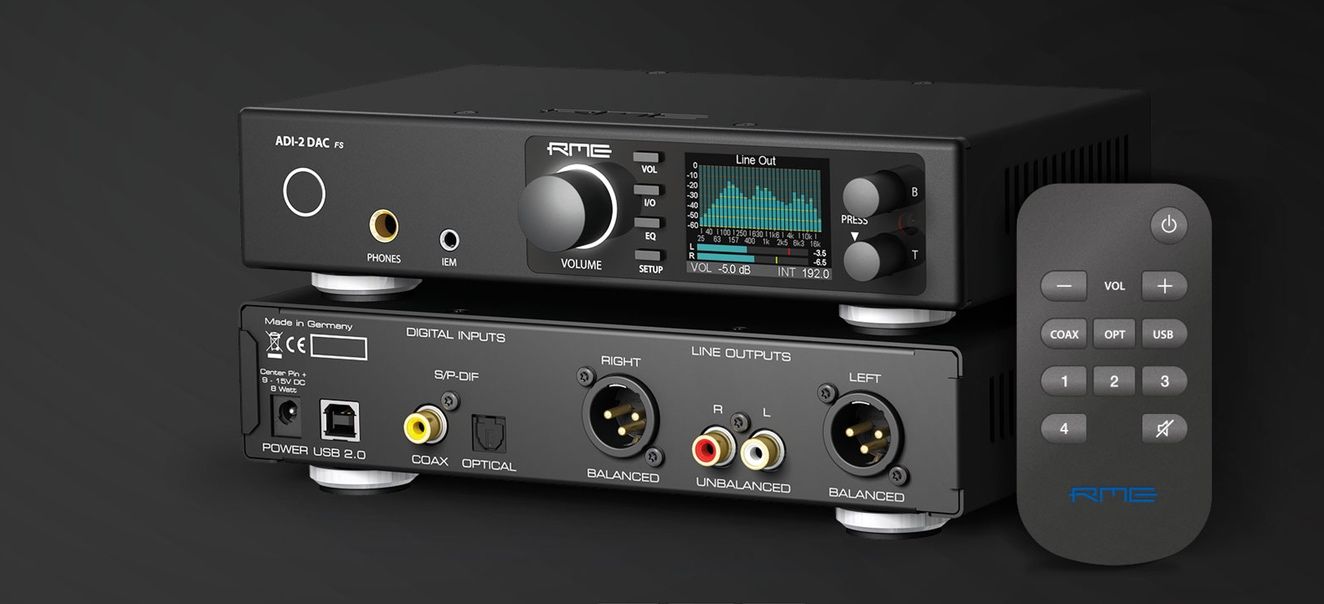

RME Audio Launches ADI-2 DAC, New Remote Controllable Headphone Amplifier and USB-DAC


RME Audio released the ADI-2 DAC, a 2-channel high-end digital/analogue converter in a 9.5"/1HE housing. With its outstanding audio quality and wide range of conversion options it is targeted at both studio professionals and audiophiles.

It uses the latest 32-bit/768 kHz reference converter RME SteadyClock technology for excellent jitter suppression and a powerful DSP processor and also offers zero-compromise conversion and playback of digital signals into the analogue world. The DA converter features two high-performance headphone outputs, including a dedicated in-ear connection.

Headphone amp with IEM output

The powerful and sophisticated headphone section is suitable for connecting high-impedance studio and HiFi headphones through an Extreme Power output, and modern high-quality in-ear systems.

These generally have particularly high sensitivity, revealing the intrinsic noise of an amplifier stage in an unpleasant way. But the ADI-2 DAC's superb signal-to-noise ratio of up to 120 dBA and extremely low distortion meets the needs of even the most demanding studio professional or audiophile enthusiast.

In addition to its excellent sound quality, the ADI-2 DAC provides impressive internal signal processing options, a 5-Band parametric EQ, user-friendly bass/treble adjustment, Crossfeed playback, and an innovative loudness control for the analogue stereo outputs.

DA converter & audio interface

The ADI-2 DAC has flexible digital and analogue ports. To make it even more versatile the DA converter has a USB recording function for incoming SPDIF signals. The ADI-2 DAC can therefore work as an ideal two-channel USB audio interface, capable of recording at sample rates up to 192 kHz and playing back up to 768 kHz, both PCM and DSD signals.

Informative & flexible display

To ensure that users have quick access to the wide variety of I/O options and processing functions, the ADI-2 DAC has an ergonomic user interface and high-resolution IPS display, where users can access such tools as the internal analyzer, based on the famous Spectral Analyzer from the DIGICheck analysis tool. The display's background and label colours can be inverted for sensitive eyes or environments. Even less obtrusive is the "AutoDark Mode", which will automatically switch off the display and all the LEDs after ten seconds.

Convenient remote control

The supplied remote control makes using the DA-converter even more convenient. Various functions are available, including volume up/down, playback source selector, and equalizer on/off.
