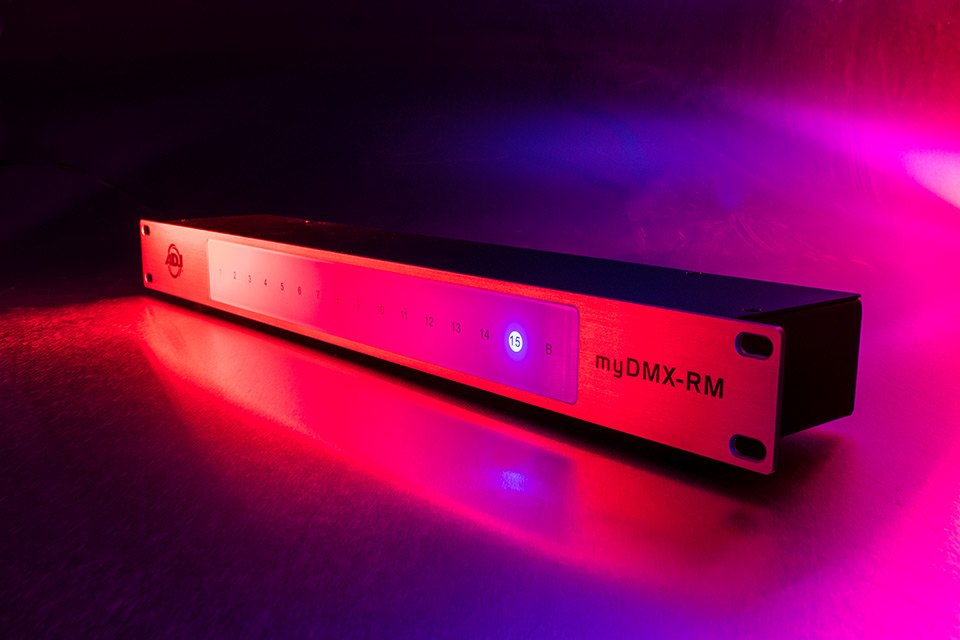

ADJ Releases myDMX-RM, A Powerful Standalone Interface



ADJ has released its new myDMX-RM lighting control interface that not only acts as a hardware dongle for the myDMX 3.0 software. It offers internal storage with 16 programmable trigger buttons. Reportedly, this makes the unit ideal for use in a wide variety of situations where simple, standalone lighting control is required.

The myDMX-RM is a robust 19” rack mountable interface that connects a computer running the myDMX 3.0 software, via USB, to a DMX-controllable lighting rig through a standard XLR connection. Out of the box, the unit allows use of myDMX 3.0 Express Mode, which includes all of the standard features needed to setup, program and control a lightshow. It is then possible to upgrade the software (via store.dmxsoft.com) to unlock advanced features such as a 3D Visualizer, MIDI control and ‘Easy Remote’ smartphone/tablet control app).

Through the software it is also possible to assign lighting programs to each of the myDMX-RM’s 16 trigger buttons. These programs are then stored on the device itself and can be recalled, simply by pushing the button, even if the computer running myDMX 3.0 has been disconnected. This makes the unit ideal for use in situations where it isn’t possible to have a lighting operator constantly on hand, for example in a bar, school or event venue.

It is also perfect for use in venues such as lounge clubs where a lighting operator will arrive part way through the day’s operating hours. The venue manager can easily select a pre-programmed ‘warm-up’ Scene, using one of the myDMX-RM’s trigger buttons, when the venue opens. Later, when it’s time to transition from a bar atmosphere to full-on dancing, the lighting operator can hook up their laptop to the interface and seamlessly assume full control of the rig.

Likewise, the unit is ideal for small clubs that can’t justify the expense of a designated lighting operator. The myDMX-RM can be pre-programmed with a variety of different looks and effects which can then easily be triggered by the DJ to complement their musical mix.

Finally, the myDMX-RM can also be used by lighting designers and operators to provide a level of backup against a computer crash. When controlling a rig from myDMX through themyDMX-RM important scenes can be stored on the unit’s internal memory so that if the computer running the software crashes, or stop functioning for any reason, changes to the lightshow can still be made using the RM’s trigger buttons while the computer issue is resolved.

The myDMX-RM’s 16 trigger buttons are all backlit, to provide a simple visual indication of which stored program is currently running. On its back panel, the unit also features both 3-pin and 5-pin XLR sockets meaning that it can easily be connected to any DMX-compatible lighting fixture. The unit allows control of a full DMX universe (512 control channels) in both its Live and Standalone modes, while multiple interfaces can be ‘stacked’ to allow control of two or three universes of DMX channels from a single myDMX program.

“myDMX continues to be extremely popular with many different types of entertainment lighting users”, comments ADJ USA’s National Sales Manager, Alfred Gonzales, “but the newmyDMX-RM will open it up for even more potential applications. It’s convenient 19” rack-mount casing and flexible standalone function makes it ideal for installation in a wide variety of venues that need the ability to very simply switch between a variety of pre-programed lighting looks. I’m sure it will appeal to many installers who will be able to go in to a venue, setup an impressive lightshow for their clients, program it using their laptop and then leave just the myDMX-RM to provide the flexibility of selecting different programs without the need for a dedicated computer or for staff to learn how to use the myDMX software.”

Its combination of a tough rack-mountable case, powerful internal memory and flexible trigger buttons make the myDMX-RM the ultimate myDMX 3.0 dongle. It is sure to not only appeal to existing users of the software but also open it up to many new users who have a need for a standalone DMX interface that offers the flexibility of a fully-featured software control solution.
