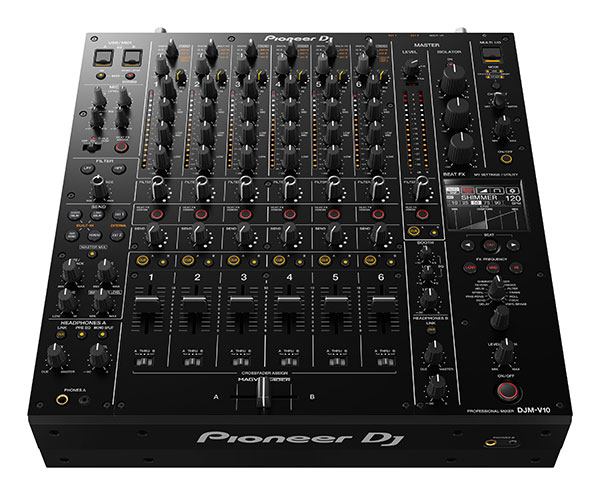

Pioneer DJ Launches 6 - Channel DJM-V10 Mixer




Pioneer DJ has launched a brand new six-channel mixer, the DJM-V10. The DJM-V10 is built to enable the most creative DJs to craft original soundscapes. This 6-channel unit produces warm audio with energy and presence, and it’s loaded with unique features. The mixer is built in a 4-band EQ to enable DJs to independently control distinct elements of music, e.g. kick drums and bass.

Elite Sound Quality

The DJM-V10 has adopted studio-quality 96-kHz/64-bit mixing and dithering processing within the DSP, as well as 32-bit high-quality A/D and D/A converters. All of this, plus the low-jitter clock circuit, helps produce a full low-end that’s complemented by vibrant mids and precise highs.



Six Channels

The Six channels allow plugging in everything from CDJs and turntables to samplers, synths, and drumming machines. To make setup easy, the analog input terminals line up with each channel on the top panel. The frequencies, curves, and boost and cut amounts on each of the 4 band EQ have all been specially designed to give total flexibility and completely isolate the high and/or low and tweak the two mid ranges.

4-Band EQ

The mixer has a newly developed filter with resonance control. Because the high and low pass are separated, the entire range of the knob is dedicated to the option you choose, giving twice the resolution to play with compared to the filter on the DJM-900NXS2.

Send/Return Section

Connect a variety of units to the TRS jack send/return terminals such as guitar pedals, FX units, and more. The built-in send/return FX are Short Delay, Long Delay, Dub Echo, and Reverb. Whether using external equipment or the built-in FX, you decide where you want to return the audio. Route it to an empty channel and make further changes to the effected sound using the EQ and filter. You can even drop it straight into your mix by turning on the Master Mix to route it to the master output.



3-Band Master Isolator

The 3-band master isolator allows to effortlessly control the tone of the entire mix. It features new boost/cut curves and adjustments to the crossover frequencies and other parameters.

Dual Headphones Output and Booth EQ

Plug in headphones at the same time as another DJ and enjoy independent monitoring. Each headphones output has its own Cue/Master Mix control and level adjustment knob so you can choose what you want to hear as you prepare to take over the decks, or during back-to-back sets. Moreover, with booth EQ, you can tweak the sound from the monitor speakers to prevent ear fatigue during long sets.

Support for External Devices, Apps, and Services

The DJM-V10 comes with built in support for a few devices, apps, and services.

  • rekordbox, TRAKTOR PRO 3, Serato DVS, and Serato DJ Pro (coming Soon)
  • RMX-1000 for iPad via MULTI I/O
  • The DJM-REC app for iPhone or iPad to upload sounds to cloud services or live-stream sets.
  • The DJM-V10 supports the extended PRO DJ LINK ShowKontrol protocol.

The DJM-V10 will be available from early February 2020.
