Roland Releases V1.2 Update for XS-62S HD Video Switcher

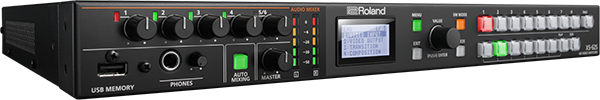

Roland Professional A/V has released the new version 1.2 firmware and software updates for the Roland XS-62S HD Video Switcher, an integrated six-channel video switcher and audio mixer with PTZ camera control capabilities in a space-saving design.

The Roland XS-62S supports seamless six-channel switching between four SDI inputs, featuring deinterlacer along with scaled HDMI and RGB inputs from computer, tablet and other video sources, plus two still images stored in internal memory. Two SDI and two HDMI outputs may be assigned to program (PGM), preview (PVW) or auxiliary (AUX) buses. The Multiview output displays all six video input sources, two still images and PGM and PVW outputs with audio meters. Three video switching modes are available, enabling the XS-62S to handle a wide range of applications, including presentations, performances and special events, corporate AV conferences and distance learning.

In PGM/PST Mode, the XS-62S operates as a traditional video switcher, enabling the grouping of multiple images on a single screen, with independent assignment to the AUX bus supporting confidence, downstage monitor or additional presentation screens. Downstream keyer (DSK), which supports both luminance (black/white) and chroma (blue/green) keying, plus PinP (picture-in-picture) functionality, enables compositing of titles, graphics and inset video. PinP may be selected in circle, heart or diamond shapes in addition to the typical square or rectangle.

In Matrix Mode, the XS-62S allows individual video input signals to be assigned to three different destinations on three buses with fade-to-black seamless switching. This mode is effective for routing signals in applications using multiple screens while simultaneously mixing program audio and controlling PTZ remote cameras.

The XS-62S features an 18-channel audio mixer with four TRS jacks and an RCA stereo pair, plus audio de-embed from the six video inputs. Roland’s innovative discreet eight-channel analog audio embedding enables the operator to select which audio source to embed separately to SDI outputs 1 and 2, for example, to fix audio issues or separate multi-language audio sources when editing after an event.

It is designed for direct control and intuitive operation by a single user in any AV application, with a dedicated menu screen and audio volume knobs easily accessible on the front panel. Programmable PTZ camera control eliminates the need for individual camera operators through one-touch recall of preset camera positions and angles and, combined with the audio auto-mixer, allows the operator to focus on switching video. Professional broadcast-quality crosspoint buttons are back-lit with brightness control for use in bright daylight or dark performance spaces.

Along with its RS-422 port providing PTZ control (VISCA), and the RS-232 connector for remote control from external hardware devices, the XS-62S features a USB port for still image uploads and for saving program files.
