Elation expands with Zoomable 6-Color and White-Light Pars with IP Rating



Elation Professional’s range of flexible LED Par lights is expanding with the launch of the 6-color SixPar Z19 IP and the variable white DW Par Z19 IP, both IP-rated and with motorized zoom. Useful for production applications or installations as a wash light, uplight, wall wash, truss warmer and more, both Par luminaires are easy-to-use, quality solutions for adding high-impact coloured or white light to shows indoors or out.

Harnessing the power from 19 individual 15W LEDs and the versatility of coverage that comes from a wide 5° to 45° zoom, the SixPar Z19 IP and DW Par Z19 IP are ideal solutions anywhere a wash of high-quality coloured or white light is required.

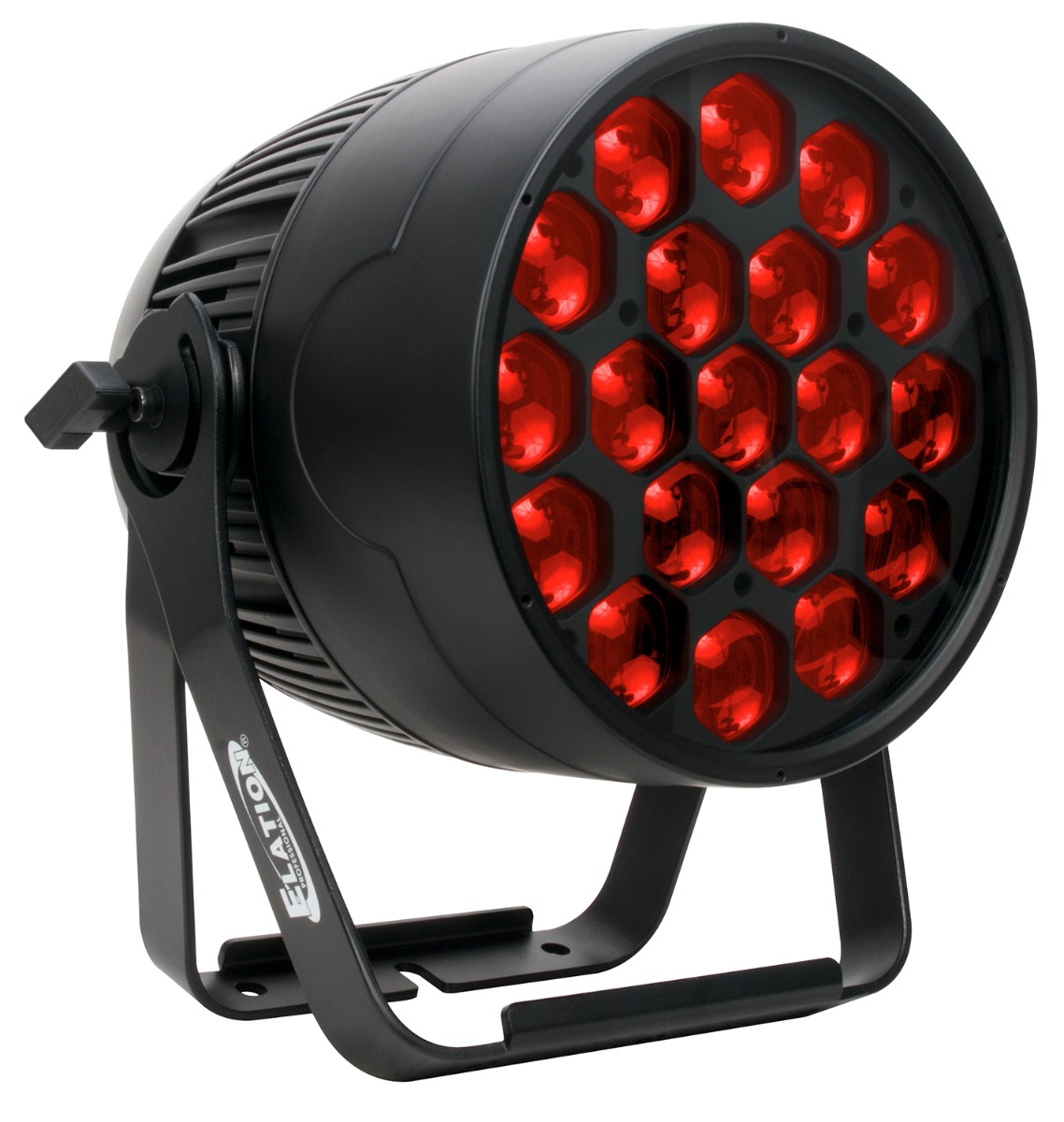

SixPar Z19 IP The SixPar Z19 IP is a bright and versatile full-color Par luminaire with nineteen 15W 6-in-1 RGBAW+UV LEDs. The 6-color LED multi-chip provides an expanded palette of colours, including stunning ambers, true whites and even ultraviolet (UV LED wavelength of 395nm). Electronic strobe and variable dimming curve effects are included and a variety of colour and chase macros make for greater programming convenience. The SixPar Z19 IP is bright, projecting up to 13,240 LUX @ 9.8’ (3m) (5° full on). The fixture is controllable via 4 DMX channel modes-14 total channels, and is RDM protocol capable- Remote Device Management.

DW Par Z19 IP The DW Par Z19 IP is a bright and versatile white-light Par luminaire with nineteen 15W 2-in-1 cool white / warm white LEDs for variable shade projections of white light. It features dynamic white colour temperature range control from 2,700K white tungsten to 6,000K cool white. Electronic strobe and variable dimming curve effects are included. The DW Par Z19 IP is exceptionally bright, projecting up to 32,064 LUX @ 9.8’ (3m) (5° full on, 4,600K). The fixture is controllable via 6 DMX channel modes- 7 total channels, and is RDM protocol capable

Common features Built with rugged die-cast aluminum exteriors and fully IP65 protected, both the SixPar Z19 IP and DW Par Z19 IP include IP-rated 5pin DMX and power CON TRUE1 in/out connections for use in all types of weather. They come with a 180° reversible LCD menu display and a 4-button touch control panel makes for simple navigation through DMX and manual settings. Multiple unit power linking means that customizable setups are quick and both fixtures come with an adjustable yoke / floor stand for flexible positioning.

Both luminaires operate flicker free for use in TV and other broadcast applications and an auto-sensing power supply covers worldwide voltages and frequencies. Both the SixPar Z19 IP and DW Par Z19 IP are energy efficient, consuming 282W and 240W of max power respectively, and offer other benefits of LED like greater reliability and less maintenance.
